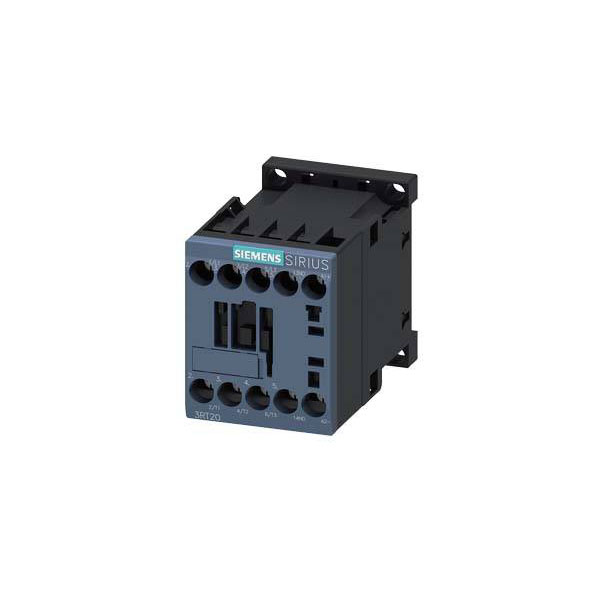

Siemens 3RT2016-1BB41 SIRIUS Contactor 9 A 4 kW 24 V DC screw connection

Siemens
Order Code:

06-8393

Brand: Siemens MPN: 3RT20161BB41 EAN-13: 4011209783942
Qty Unit Price (Ex VAT)
1+ £38.03
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
136 in stock, despatched in 4 working days

The Siemens 3RT2016-1BB41 contactor is a robust electrical device designed to control electric motors up to 4 kW, operating at a current of 9 A and a voltage of 24 V DC. It features an auxiliary contact for additional control capabilities. This contactor is typically used in industrial and commercial settings for motor switching and control applications.
Type Contactor
Coil Voltage 24V DC
Mounting Style DIN rail
Terminals 3-pin
Auxiliary contact type 1 maker
Connection Screw terminal
Contact Type 3 makers
Current load 9A
Depth 73mm
Dimensions (W x H x D) 45 x 58 x 73 mm
Durability 3.0E7
Height 58mm
IP Rating IP20
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RT2016-1BB41
Misc Attribute 2 S00
Number of auxiliary contacts as normally open contact 1
Number of normally open contacts as main contact 3
Power 4kW
Rated operation current Ie at AC-1, 400 V 22A
Rated operation current Ie at AC-3, 400 V 9A
Rated operation current Ie at AC-4, 400 V 8.5A
Rated operation power at AC-3, 400 V 4kW
Rated operation power NEMA 3.677493749
Suitable for distribution board TRUE
Switching voltage (max.) 400V AC
Type of electrical connection of main circuit Screw connection
Voltage type for actuating DC
Width 45mm
