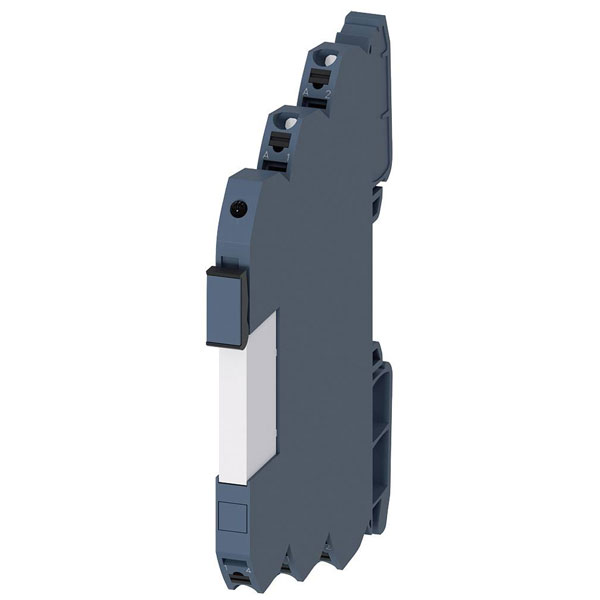

Siemens 3RQ31182AM01 is a coupling relay module designed for efficient signal coupling and electrical isolation within control and automation systems. Crafted from durable grey plastic, this module measures 18mm in width, making it suitable for compact installations. Its design ensures reliable performance in interfacing and separating control signals, which is crucial in complex industrial applications. Typical uses include integration within control panels, automated manufacturing systems, and electrical distribution setups, where precise signal management and isolation are essential. The module is recognised for maintaining high standards of operational safety and is widely implemented when robustness and reliability are required in harsh environments.
| Type |
3RQ3118-2AM01 |
| Mounting Type |
Rail |
| Height |
93mm |
| Width |
6.2 |
| Length |
76mm |
| Complete with socket |
true |
| Content |
1 |
| Degree of protection (IP) |
IP20 |
| Depth |
76mm |
| Drive, polarization |
Polarized |
| Drive, switching attitude |
Mono stable |
| IP Rating |
IP20 |
| Material contact |
N/A |
| Material of contact insert |
N/A |
| Material of contact surface |
N/A |
| Max. starting current |
N/A |
| Nominal Current |
N/A |
| Number of contacts as change-over contact |
1 |
| Number of contacts as normally closed contact |
N/A |
| Number of contacts as normally open contact |
N/A |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Operating voltage DC |
N/A |
| Rated control supply voltage AC 50 Hz |
N/A |
| Rated control supply voltage AC 60 Hz |
N/A |
| Rated control supply voltage DC |
N/A |
| Relay technology category according to IEC 61810-7 |
N/A |
| Type of electric connection |
N/A |
| Type of switch contact |
N/A |
| Voltage type (operating voltage) |
N/A |
| Voltage type for actuating |
DC |
| With detachable clamps |
false |
| With forced-guided contacts |
false |
| With LED indication |
true |
