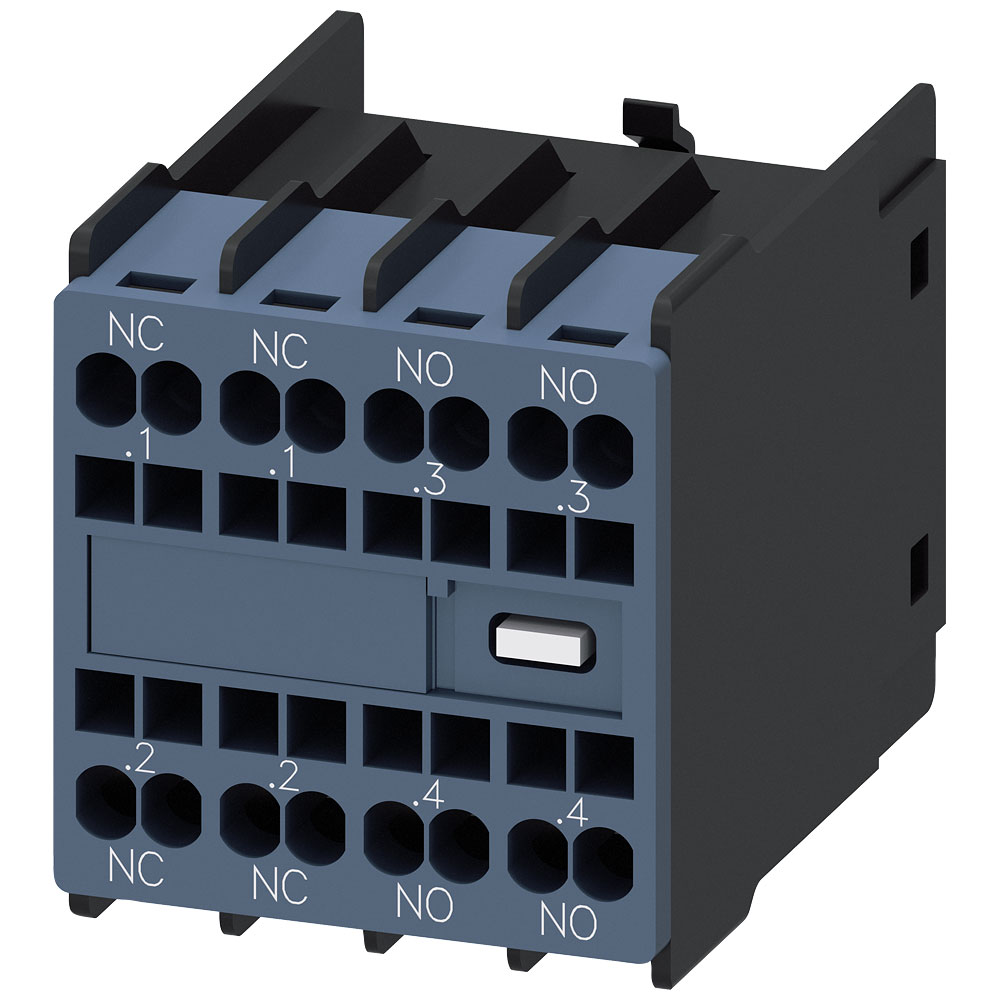

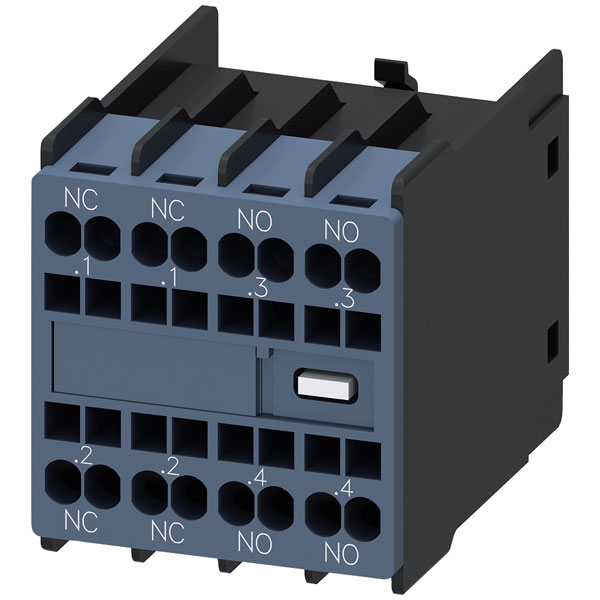

Siemens 3RH29112HA22 Auxiliary Switch module 1 NC path ring lug

Image Representative of Range

Siemens 3RH29112HA22 Auxiliary Switch module 1 NC path ring lug

Siemens
Order Code:

06-8279

Brand: Siemens MPN: 3RH29112HA22 EAN-13: 4011209829558
Qty Unit Price (Ex VAT)
1+ £15.13
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
30 in stock, despatched in 4 working days

Siemens offers the 3RH2911-2HA22 auxiliary switch module, designed for integration with electrical contactors. This device enhances the functionality of contactors by providing additional auxiliary contacts. Typical applications include industrial control panels and automation systems.
Type Auxiliary switch module
Depth 47.7mm
Dim (W x H x D) 36 x 41.5 x 47.7 mm
Height 41.5mm
IP Rating IP20
Lamp holder None
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 3RH2911-2HA22
Model Top mounting
Mounting Method Other
Mounting Type Snap-in
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 2
Number of contacts as normally open contact 2
Number of fault-signal switches 0
Rated operation current Ie at AC-15, 230 V 6A
Type of electric connection Spring clamp connection
Width 36mm
