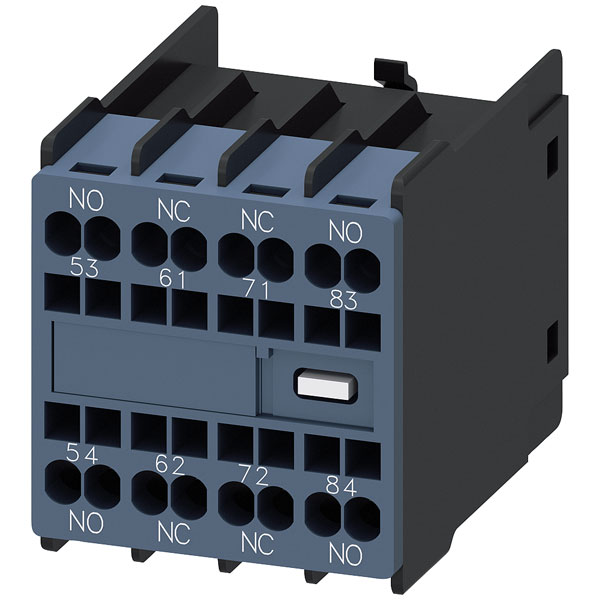

Siemens 3RH29112GA22 SIRIUS Auxiliary Switch 2 NO + 2 NC spring conn

Image Representative of Range

Siemens 3RH29112GA22 SIRIUS Auxiliary Switch 2 NO + 2 NC spring conn

Siemens
Order Code:

06-8277

Brand: Siemens MPN: 3RH29112GA22 EAN-13: 4011209829473
Qty Unit Price (Ex VAT)
1+ £15.13
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
29 in stock, despatched in 4 working days

The Siemens 3RH2911-2GA22 Auxiliary switch is a versatile component used in electrical contactor applications. It is designed to enhance the functionality of contactors by providing additional contact points for control circuits. Typical applications include industrial automation systems where reliable and efficient control is required.
Type Auxiliary switch
Mounting Style Snap-in
Connection Spring-loaded connector
Depth 47.7mm
Dimensions (W x H x D) 36 x 41.5 x 47.7 mm
Durability 10000000
Electrical lifespan 200000
Height 41.5mm
IP Rating IP20
Lamp holder None
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 1 3RH2911-2GA22
Misc Attribute 2 S00
Model Top mounting
Mounting Method Other
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 2
Number of contacts as normally open contact 2
Number of fault-signal switches 0
Rated operation current Ie at AC-15, 230 V 6A
Type of electric connection Spring clamp connection
Width 36mm
