Siemens 3RH29111XA220MA0 Auxiliary Switch module 400A 1000V 1pc

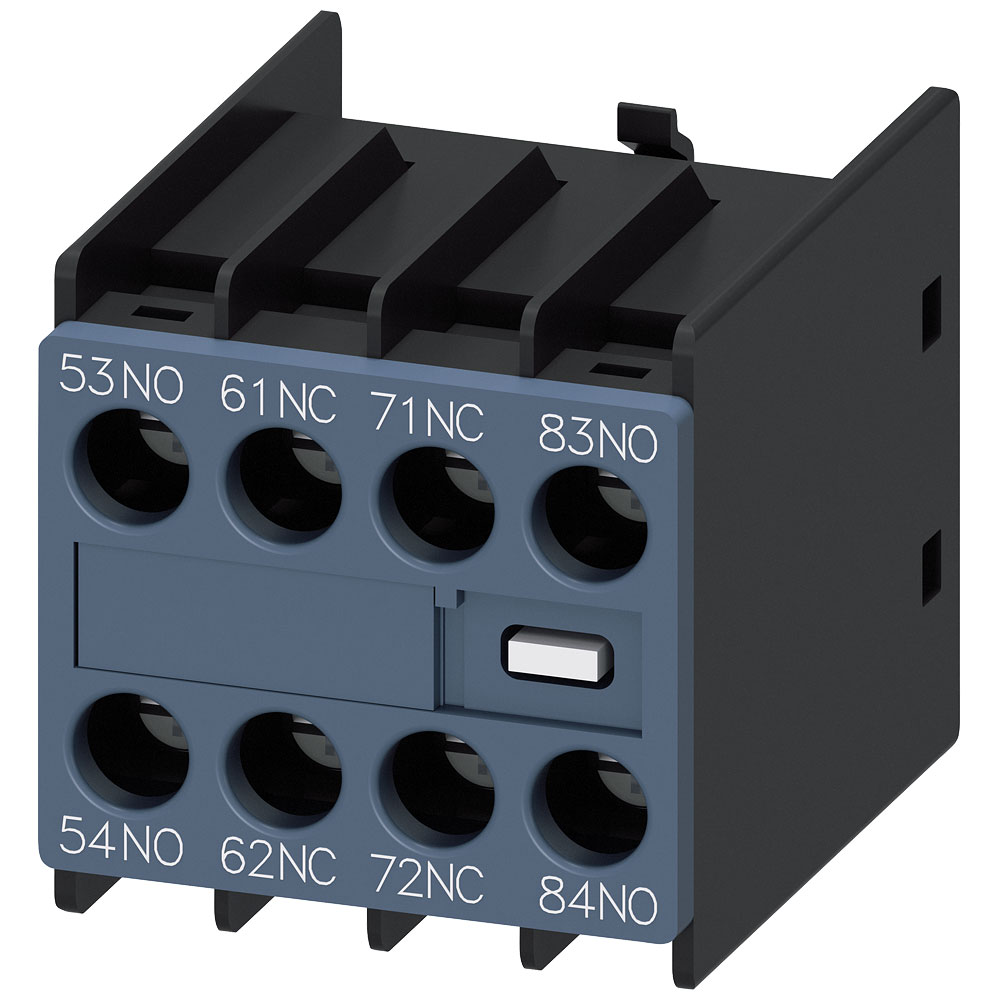

Image Representative of Range

Siemens 3RH29111XA220MA0 Auxiliary Switch module 400A 1000V 1pc

Siemens
Order Code:

06-8273

Brand: Siemens MPN: 3RH29111XA220MA0 EAN-13: 4011209891579
Qty Was Unit Price (Ex VAT)
1+ £35.66 £14.73
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
47 available to back orderBack-order availability date - 09/01/2026

Siemens manufactures the 3RH2911-1XA22-0MA0 auxiliary switch module, designed to enhance the functionality of electrical contactors. This module provides reliable auxiliary contact support and is ideal for industrial automation systems where precision control of machinery is essential. Its robust design ensures durability and long-term performance in demanding environments.
Type Auxiliary switch module
Mounting Style Snap-in
Depth 43.7mm
Dimensions (W x H x D) 36 x 37.5 x 43.7 mm
Height 37.5mm
IP Rating IP20
Lamp holder None
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 3RH2911-1XA22-0MA0
Model Top mounting
Mounting Method Other
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 2
Number of contacts as normally open contact 2
Number of fault-signal switches 0
Rated operation current Ie at AC-15, 230 V 6A
Type of electric connection Screw connection
Width 36mm
