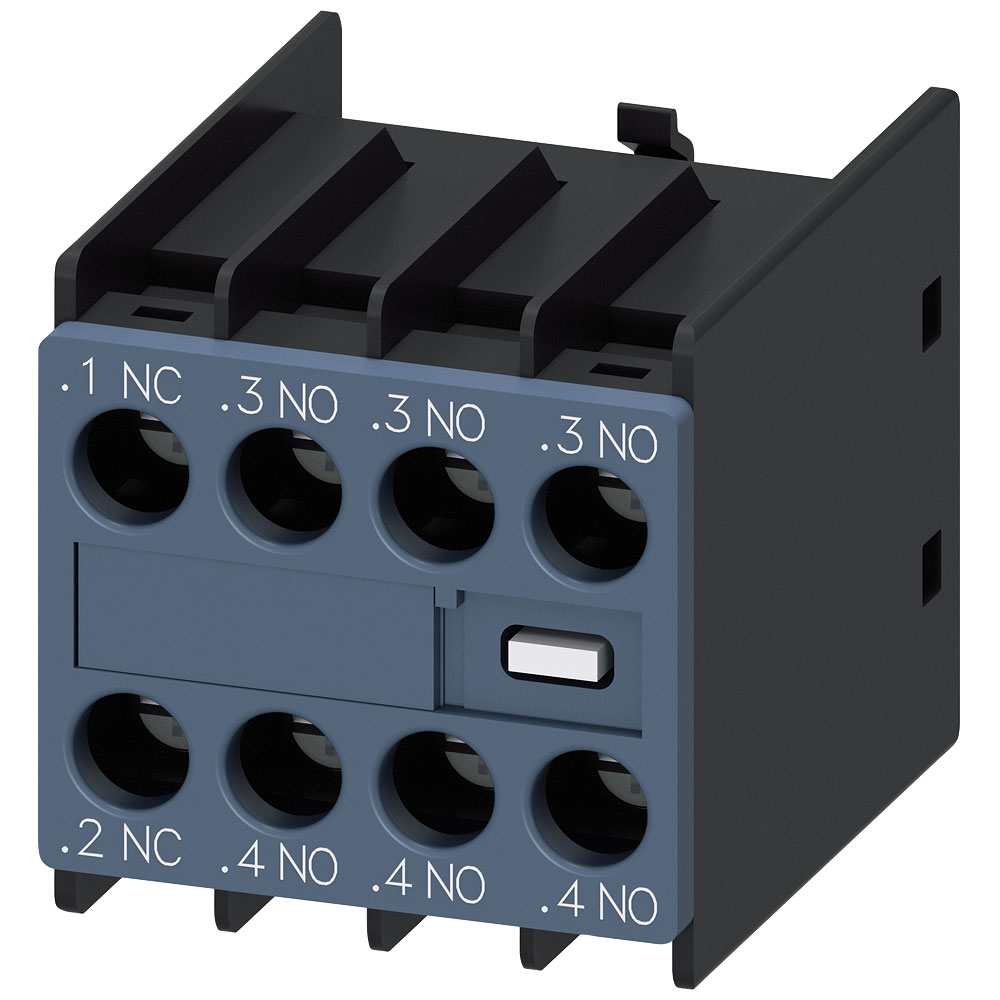

Siemens 3RH29111HA31 Auxiliary Switch module 3 NO+1 NC screw terminal

Image Representative of Range

Siemens 3RH29111HA31 Auxiliary Switch module 3 NO+1 NC screw terminal

Siemens
Order Code:

06-8271

Brand: Siemens MPN: 3RH29111HA31 EAN-13: 4011209829350
Qty Unit Price (Ex VAT)
1+ £15.13
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
29 in stock, despatched in 4 working days

Siemens is the manufacturer of the 3RH2911-1HA31 Auxiliary switch module. This electrical contactor is used to expand the functionality of a main contactor by adding auxiliary contacts. It is typically applied in industrial automation and control systems to enhance the operation of electrical circuits.
Type Auxiliary switch module
Mounting Style Snap-in
Depth 43.7mm
Dimensions (W x H x D) 36 x 37.5 x 43.7 mm
Height 37.5mm
IP Rating IP20
Lamp holder None
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 3RH2911-1HA31
Model Top mounting
Mounting Method Other
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 3
Number of fault-signal switches 0
Rated operation current Ie at AC-15, 230 V 6A
Type of electric connection Screw connection
Width 36mm
