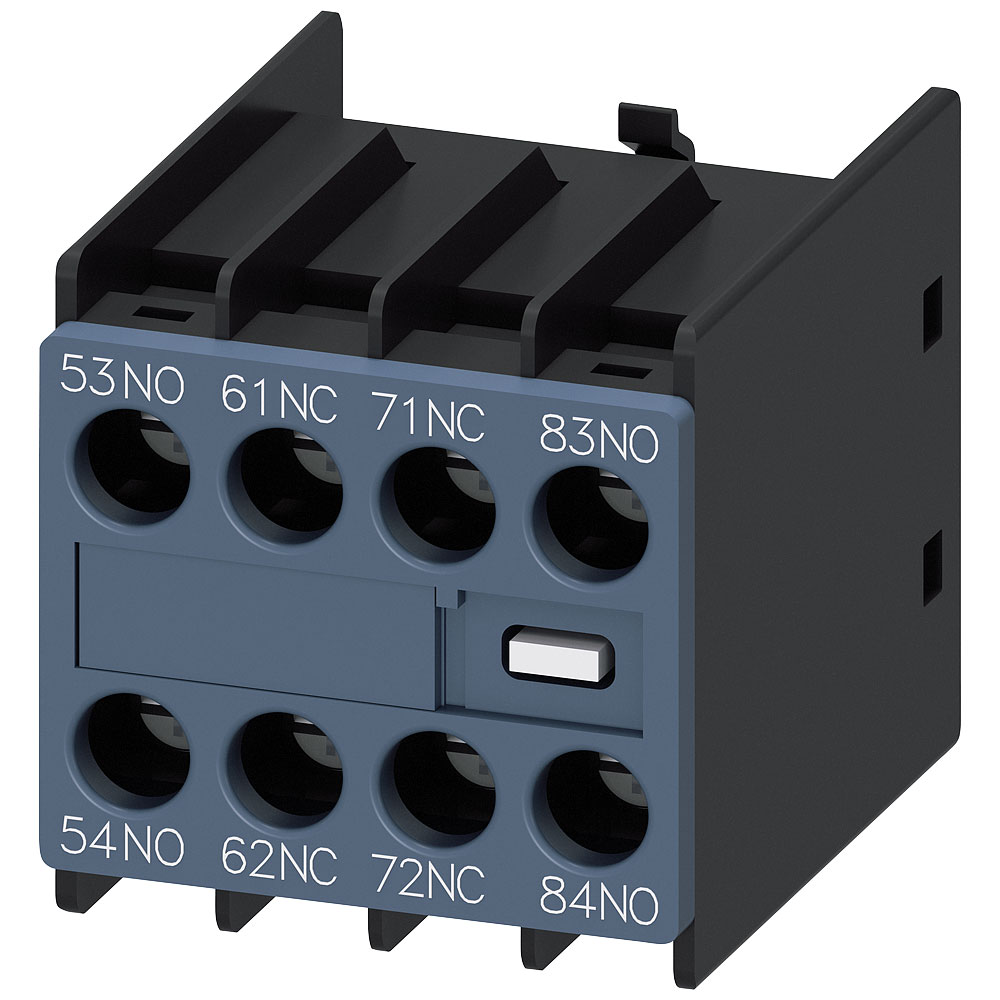

Siemens 3RH29111GA22 SIRIUS Auxiliary Switch 2NO+2NC screw connection

Siemens manufactures the 3RH2911-1GA22 Auxiliary Switch, designed to enhance the functionality of electrical contactors. This auxiliary switch is known for its reliability and ease of integration into control circuits. It is typically used in industrial and commercial applications where additional signalling and control are required.

Type	Auxiliary switch
Connection	Screws
Depth	43.7mm
Dimensions	(W x H x D) 36 x 37.5 x 43.7 mm
Durability	10000000
Electrical lifespan	200000
Height	37.5mm
IP Rating	IP20
Lamp holder	None
Maximum Temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	3RH2911-1GA22
Misc Attribute 2	S00
Model	Top mounting
Mounting method	Other
Mounting Style	Snap-in
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	2
Number of fault-signal switches	0
Rated operation current Ie at AC-15, 230 V	6A
Terminals	Screws
Type of electric connection	Screw connection
Width	36mm
