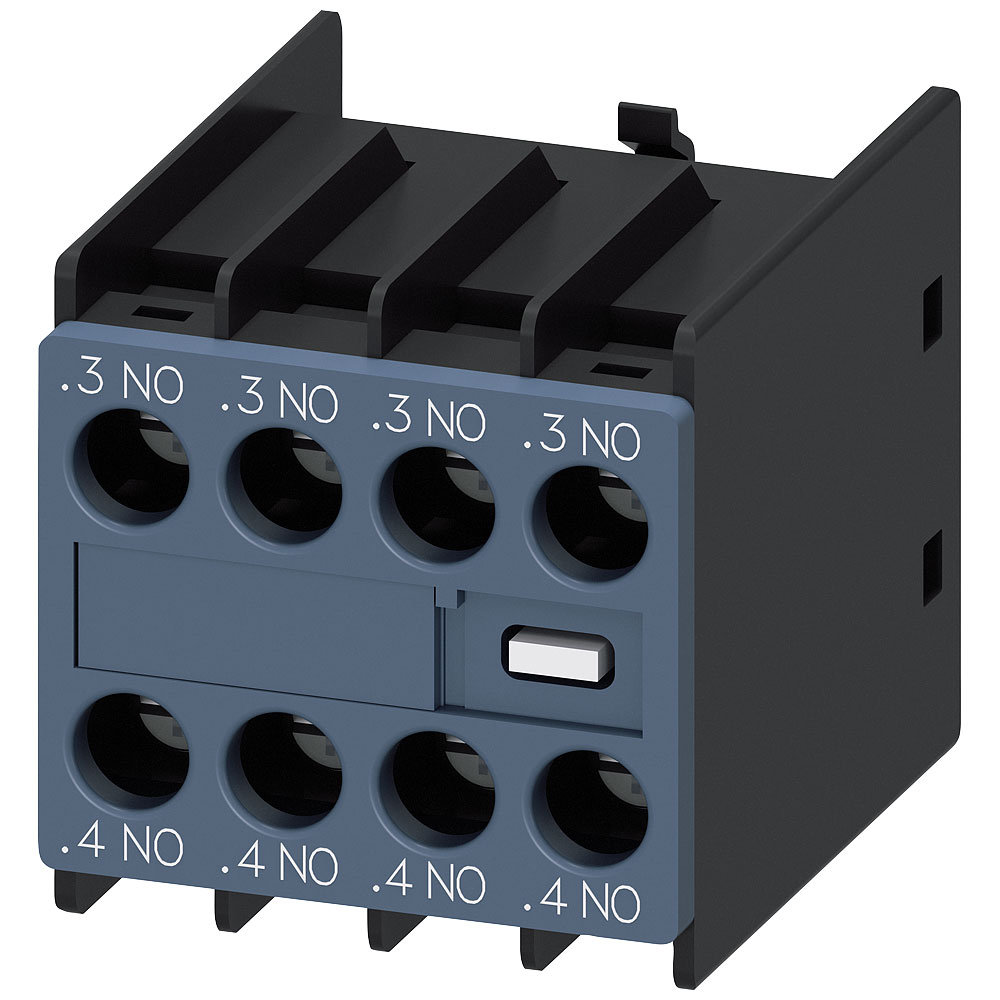

Siemens 3RH2911-1FA40 SIRIUS Auxiliary Switch module 10 A 4 S paths

The Siemens 3RH2911-1FA40 Auxiliary Switch Module is a high-quality electrical component designed for use with contactors. Rated at 10 A, this module is ideal for enhancing control circuit versatility in industrial automation and motor control systems. Typically, it is employed to provide additional signalling and control functionalities in various electrical circuits.

Type	Auxiliary switch module
Auxiliary contact type	4 makers
Connection	Screw terminal
Contact Current Rating	40A
Current load	10A
Depth	43.7mm
Dimensions	(W x H x D) 36 x 37.5 x 43.7 mm
Durability	1.0E7
Electrical lifespan	200000
Height	37.5mm
IP Rating	IP20
Lamp holder	None
Max. temperature	+60°C
Min. temperature	-25°C
Misc Attribute	3RH2911-1FA40
Model	Top mounting
Mounting method	Other
Mounting Style	Front
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	4
Number of fault-signal switches	0
Number of Poles	4
Rated operation current Ie at AC-15, 230 V	6A
Terminals	4-pin
Type of electric connection	Screw connection
Width	36mm
