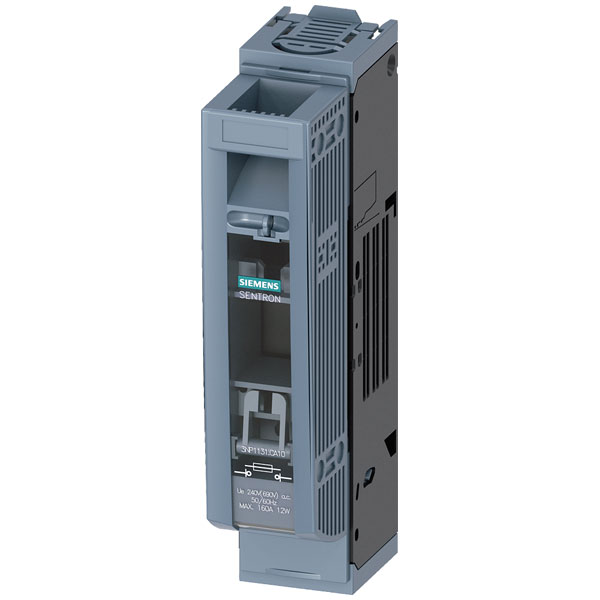

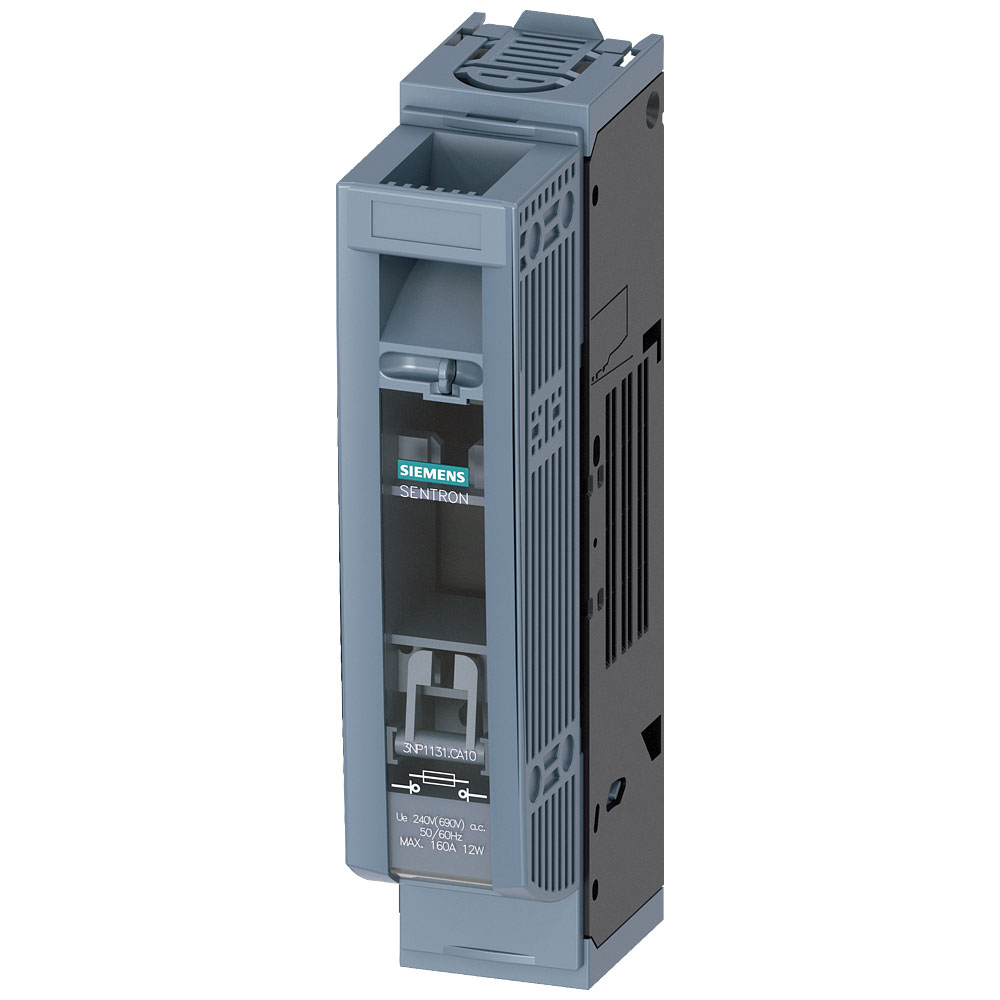

Siemens 3NP11311CA10 SENTRON Switch disconnector NH00 160 A 240 V AC

The Siemens 3NP1131-1CA10 is a switch disconnector fuse designed for electrical protection with a fuse size of 00, supporting up to 160 A and 240 V AC or 120 V DC. It ensures reliable operation in various industrial applications requiring secure electrical isolation. Typically used in electrical panels and switchboards, it provides safety and efficiency in power distribution systems.

Type	Switch disconnector fuse
Fuse Size	00
Current Rating	160A
Voltage Rating - AC	240 V
Termination	Screw terminal
Cable Entry	Other
Conditioned rated short-circuit current Iq	80kA
Degree of protection (IP), front side	IP40
Equipped with connectors	false
Max. rated operation voltage Ue AC	240V
Motor drive integrated	false
Motor drive optional	false
Number of pins	1
Number of Poles	1
Position control element	N/A
Rated operation power at AC-23, 400 V	N/A
Rated permanent current Iu	160A
Rated short-time withstand current lcw	N/A
Suitable for busbar mounting	false
Suitable for floor mounting	false
Suitable for front mounting	false
Suitable for fuses	NH000, NH00
Type of control element	N/A
Type of electrical connection of main circuit	N/A
Version as emergency stop installation	false
Version as main switch	false
Version as safety switch	true
With error protection	false
