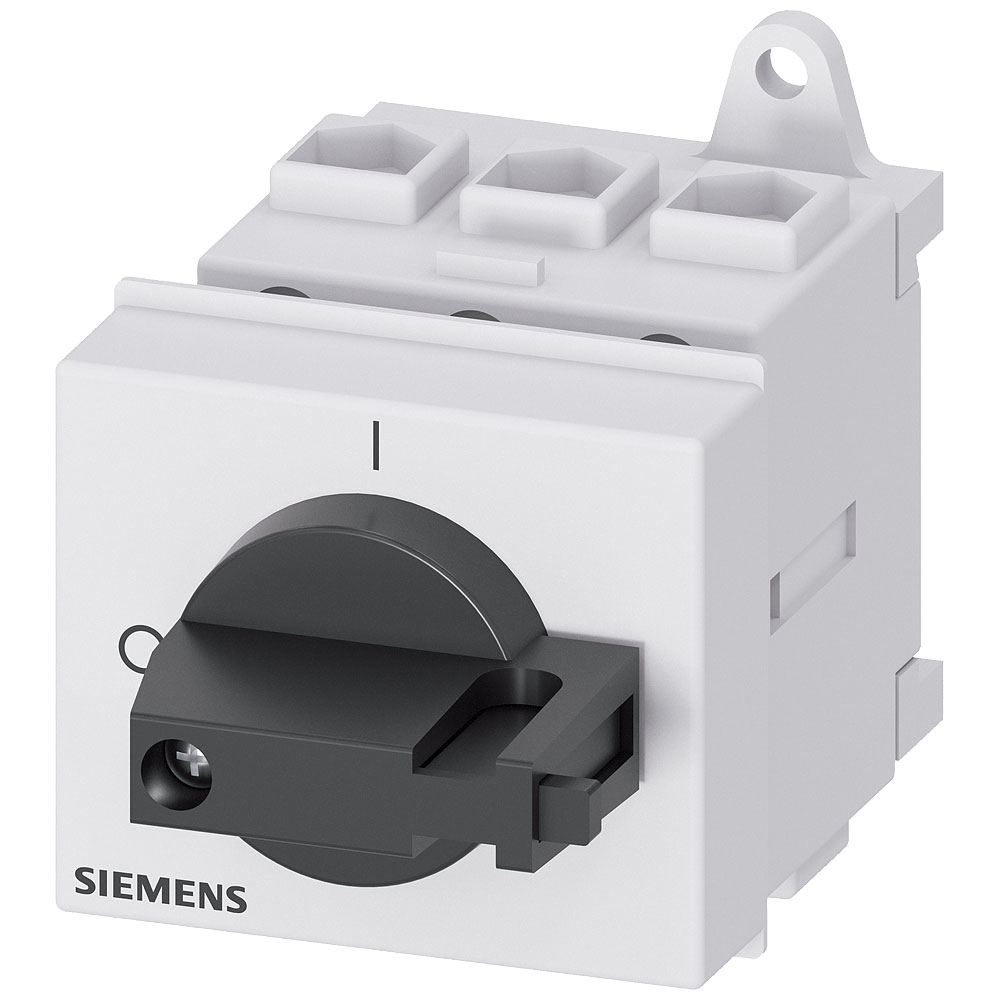

The Siemens 3LD22300TK11 circuit breaker is a black, 3-pin device designed for use with 16 mm² wiring, handling up to 32 A and 690 V AC. Its robust design ensures reliable protection and switching in electrical circuits. This circuit breaker is typically used in industrial and commercial settings to safeguard electrical systems and machinery.
| Type |
Circuit breaker |
| Number of Positions |
3 |
| Colour control element |
Black |
| Cross Section |
16mm² |
| Degree of protection (IP), front side |
IP40 |
| Degree of protection (NEMA) |
Other |
| Depth |
91mm |
| Device construction |
Built-in device fixed built-in technique |
| Dim |
(W x H x D) 53 x 55 x 91 mm |
| Factory colour |
Black |
| Height |
55mm |
| Interlockable |
TRUE |
| Max. rated operation voltage Ue AC |
690V |
| Misc Attribute |
Step Switches |
| Motor drive integrated |
FALSE |
| Motor drive optional |
FALSE |
| Nominal Current |
32A |
| Nominal current - rounded value |
32A |
| Nominal Voltage |
690V AC |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of Pins |
3 |
| Number of switches |
1 |
| Operating Voltage |
690V AC |
| Rated operation power at AC-23, 400 V |
12kW |
| Rated operation power at AC-3, 400 V |
10kW |
| Rated permanent current at AC-21, 400 V |
32A |
| Rated permanent current at AC-23, 400 V |
22 |
| Rated permanent current Iu |
32A |
| Rated short-time withstand current lcw |
0.64kA |
| Suitable for distribution board installation |
TRUE |
| Suitable for floor mounting |
TRUE |
| Suitable for front mounting 4-hole |
FALSE |
| Suitable for front mounting centre |
FALSE |
| Suitable for intermediate mounting |
TRUE |
| Type of control element |
Toggle |
| Type of electrical connection of main circuit |
Frame clamp |
| Version as emergency stop installation |
FALSE |
| Version as main switch |
TRUE |
| Version as maintenance-/service switch |
TRUE |
| Version as reversing switch |
FALSE |
| Version as safety switch |
TRUE |
| Voltage release optional |
FALSE |
| Width |
53mm |
