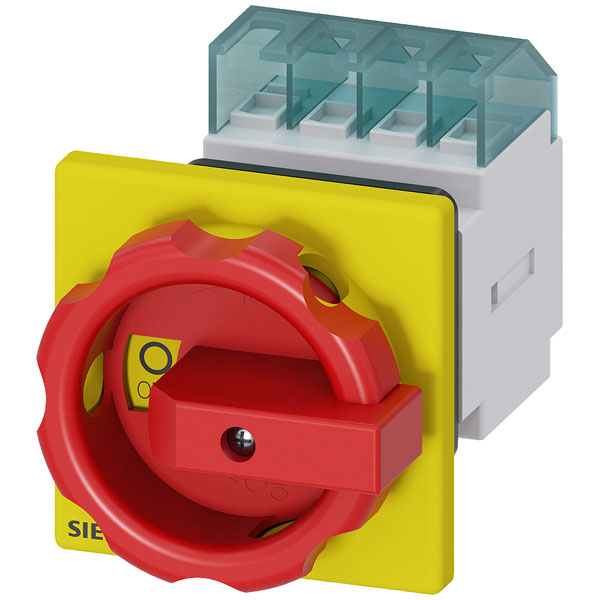

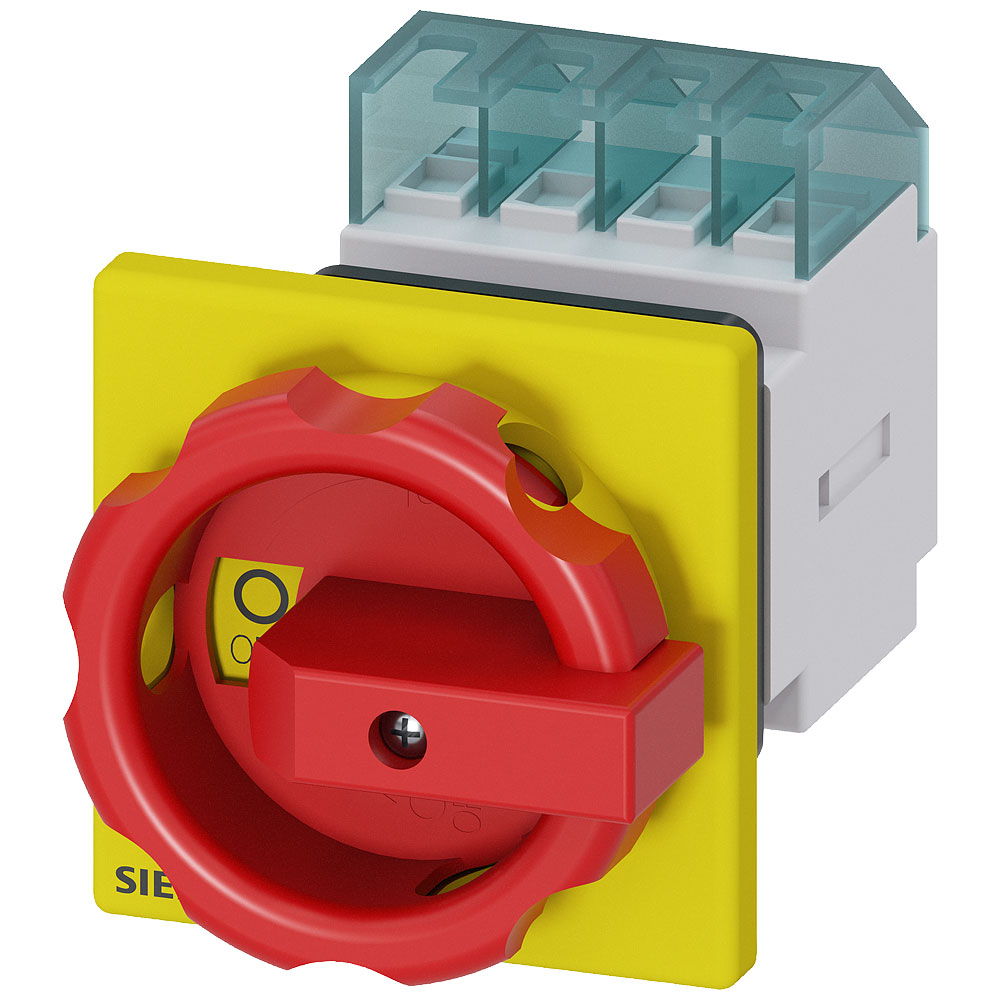

Manufactured by Siemens, this 3-pin circuit breaker is designed for 6 mm² conductors and operates at 16 A with a voltage rating of 690 V AC. Its red and yellow colour scheme enhances visibility in control panel applications, safeguarding electrical circuits from overloads and faults. Ideal for industrial and commercial use, it ensures reliable power distribution and protection in high-voltage environments.
| Type |
Circuit breaker |
| Number of Positions |
3 |
| Colour control element |
Red |
| Cross Section |
6mm² |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA) |
Other |
| Depth |
116.5mm |
| Device construction |
Built-in device fixed built-in technique |
| Dim |
(W x H x D) 67 x 84 x 116.5 mm |
| Height |
84mm |
| Interlockable |
TRUE |
| Max. rated operation voltage Ue AC |
690V |
| Misc Attribute |
Emergency stop switch |
| Motor drive integrated |
FALSE |
| Motor drive optional |
FALSE |
| Nominal Current |
16A |
| Nominal current - rounded value |
16A |
| Nominal Voltage |
690V AC |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of Pins |
3 |
| Number of switches |
1 |
| Operating Voltage |
690V AC |
| Rated operation power at AC-23, 400 V |
8kW |
| Rated operation power at AC-3, 400 V |
6kW |
| Rated permanent current at AC-21, 400 V |
16A |
| Rated permanent current at AC-23, 400 V |
16 |
| Rated permanent current Iu |
16A |
| Rated short-time withstand current lcw |
0.34kA |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting 4-hole |
FALSE |
| Suitable for front mounting centre |
TRUE |
| Suitable for intermediate mounting |
FALSE |
| Type of control element |
Short thumb-grip |
| Type of electrical connection of main circuit |
Frame clamp |
| Version as emergency stop installation |
TRUE |
| Version as main switch |
TRUE |
| Version as maintenance-/service switch |
TRUE |
| Version as reversing switch |
FALSE |
| Version as safety switch |
TRUE |
| Voltage release optional |
FALSE |
| Width |
67mm |
