Self Electronics SLT20-500IL-UN LED Driver 20W 150-500mA Surge Protected

Self Electronics
Order Code:

10-5685

Brand: Self Electronics MPN: SLT20-500IL-UN EAN-13: 4021087039482
Qty Unit Price (Ex VAT)
1+ £17.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
38 in stock, despatched in 4 working days

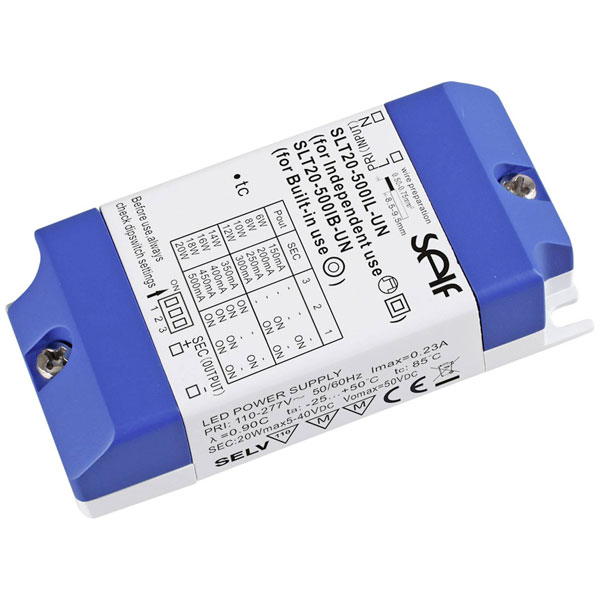

The Self Electronics SLT20-500IL-UN LED driver is a constant current power supply with a 20 W output and adjustable current from 150 to 500 mA. It features surge protection and is approved for use on furniture, though it is not dimmable. This LED driver is typically used for powering LED strips or similar applications.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 41.00 x 85.30 x 22.00 mm
Height 22.00mm
Input voltage (max.) 305V AC
IP Rating IP20
Length 41.00mm
Max. output current 500mA
Max. power 20W
Max. temperature 50°C
Min. input voltage 108V AC
Min. temperature -20°C
Misc Attribute 1 Constant current
Misc Attribute 2 Synchronised
Number of Inputs 1
Number of Outputs 1
Operating Current 240mA
Output current (max.) - rounded 500mA
Output current (min.) 150mA
Output voltage (max.) 42.0V DC
Output voltage (min.) 2.0V DC
Power (min.) 0.3W
Power range 0.3 up to 20 W
Test mark CE; SELV; MM; ENEC;
Width 85.30mm
