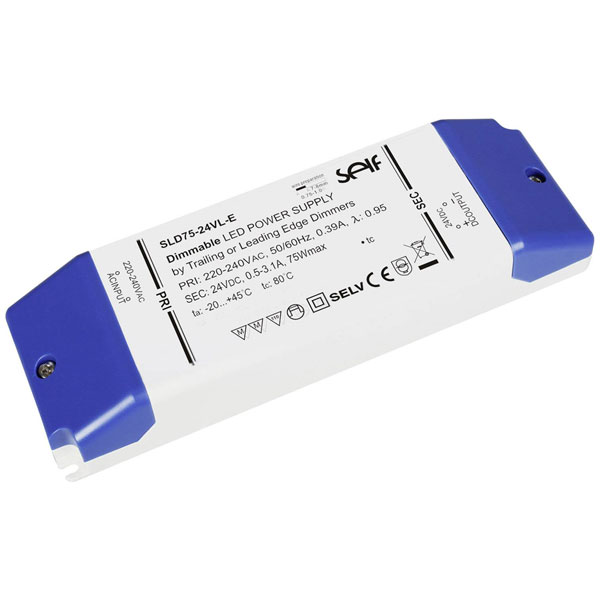

Self Electronics SLD75-24VL-E LED Transformer 75W 24V DC Dimmable for Furniture

Self Electronics
Standard range
Order Code:

10-5673

Brand: Self Electronics MPN: SLD75-24VL-E EAN-13: 4021087039727
Qty Unit Price (Ex VAT)
1+ £47.18
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
45 in stock, despatched in 4 working days

The Self Electronics SLD75-24VL-E LED transformer is a dimmable, constant voltage power supply delivering 75 W and 24 V DC for LED applications. It features surge protection and is approved for use on furniture. Ideal for powering LED strips and other low-voltage lighting systems.
Type LED transformer
Connection Screw terminal
Dim (L x W x H) 185 x 60 x 31 mm
Height 31mm
Input voltage (max.) 264V AC
IP rating IP20
Length 185mm
Max. output current 3.1A
Max. power 75W
Max. temperature +45°C
Min. input voltage 198V AC
Min. temperature -10°C
Misc Attribute Constant voltage
No. of inputs 1
No. of outputs 1
Operating voltage 230V AC
Output current (max.) - rounded 3.1A
Output current (min.) 0.5A
Output voltage (max.) 24V DC
Power range 75 W (max)
Protection class II
Test mark CE; SELV; MM; ENEC
Weight 306g
Width 60mm
