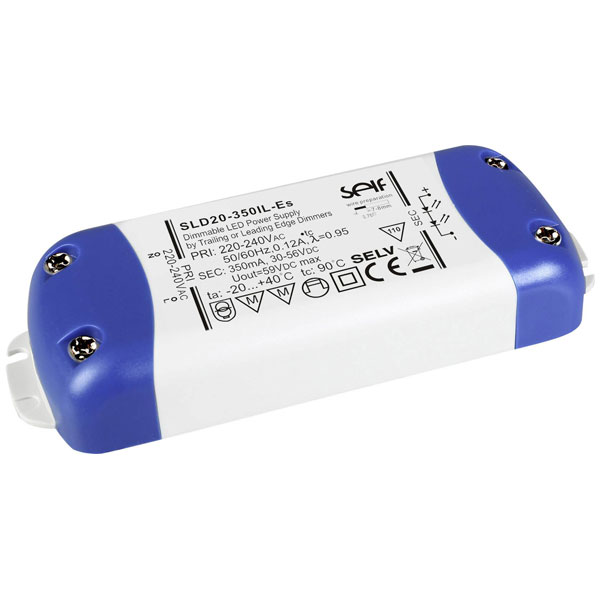

Self Electronics SLD20-350IL-ES LED Driver 18.9W 350mA Dimmable 30-54V DC

Self Electronics
Order Code:

10-5659

Brand: Self Electronics MPN: SLD20-350IL-ES EAN-13: 4021087047265
Qty Unit Price (Ex VAT)
1+ £15.64
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
34 in stock, despatched in 4 working days

The Self Electronics SLD20-350IL-ES LED driver provides a constant current of 350 mA with a power output of 18.9 W, suitable for use with LED lighting systems requiring 30 - 54 V DC. It includes features like dimmability, surge protection, and is safe for use on flammable surfaces. This LED driver is ideal for indoor LED strip lighting projects that require reliable power control and safety features.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 121 x 45 x 20 mm
Height 20mm
Input voltage (max.) 264V AC
IP Rating IP20
Length 121mm
Max. output current 350mA
Max. power 18.9W
Max. temperature 40°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute Constant current
Number of Inputs 1
Number of Outputs 1
Operating Current 120mA
Operating Voltage 230V AC
Output current (max.) - rounded 350mA
Output voltage (max.) 54V DC
Output voltage (min.) 30V DC
Power (min.) 10.5W
Power range 10.5 up to 18.9 W
Protection Class II
Test mark Getaktet
Width 45mm
