Sedlbauer 825073 Toroidal Transformer 2x115V AC 1000VA 4.35A Temp Switch

Sedlbauer
Standard range
Order Code:

12-9210

Brand: Sedlbauer MPN: 825073 EAN-13: 2050001588166
Qty Unit Price (Ex VAT)
1+ £259.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

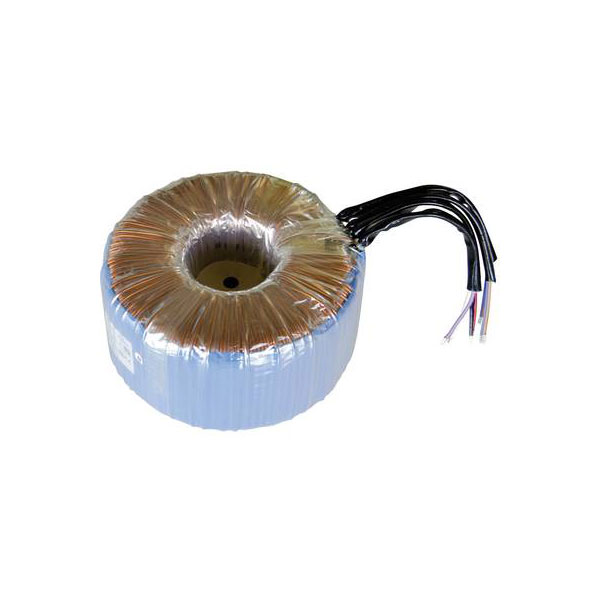

The Sedlbauer 825073 toroidal core transformer, produced by Sedlbauer, offers a dual 115 V AC output with a power capacity of 1000 VA and a current rating of 4.35 A. Its toroidal core design promotes efficiency and reduces electromagnetic interference, making it ideal for reliable automation and halogen lighting applications. This transformer is suitable for installations requiring stable voltage regulation and compact size.
Type Toroidal core transformer
(Ø) 172mm
Cable length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 172 mm x 88 mm
Frequency 50 - 60Hz
Height 88mm
Input voltage 115V
Input voltage (number x voltage) 2 x 115 V
Insulation class B
Max. ambient temperature +60°C
No. of inputs 2
No. of outputs 2
Output Current 4.35A
Output voltage 115V AC
Output voltage (number x voltage) 2 x 115 V AC
Power 1000VA
Protection class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
Weight 8.75kg
