Sedlbauer 825053 Toroidal Transformer 300VA 2x115V 2x30V AC 30V

Sedlbauer
Standard range
Order Code:

12-9206

Brand: Sedlbauer MPN: 825053 EAN-13: 2050001588067
Qty Unit Price (Ex VAT)
1+ £126.32
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
25 in stock, despatched in 4 working days

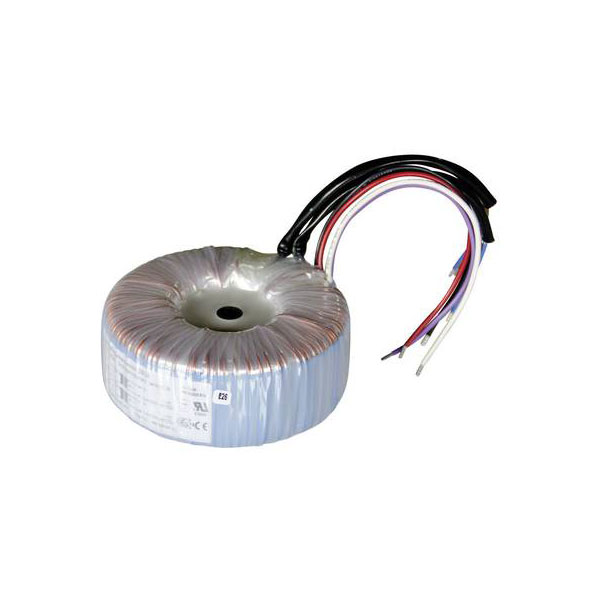

The Sedlbauer 825053 toroidal core transformer provides dual primary voltages of 2 x 115 V and secondary voltages of 2 x 30 V AC with a power rating of 300 VA and a current capacity of 5 A. It features a compact and efficient design, making it suitable for use in automation and halogen lighting applications. Sedlbauer is known for producing reliable transformers used widely in industrial and electrical equipment.
Type Toroidal core transformer
(Ø) 130mm
Cable length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 130 mm x 60 mm
Frequency 50 - 60Hz
Height 60mm
Input voltage 115V
Input voltage (number x voltage) 2 x 115 V
Insulation class B
Max. ambient temperature +60°C
No. of inputs 2
No. of outputs 2
Output Current 5A
Output voltage 30V AC
Output voltage (number x voltage) 2 x 30 V AC
Power 300VA
Protection class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
Weight 3.07kg
