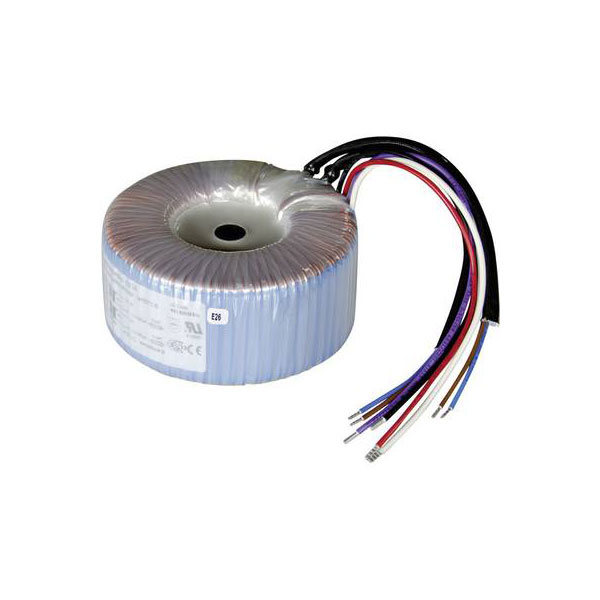

Sedlbauer 825046 Toroidal Transformer 2x115V 2x18V AC 250VA 6.95A

The Sedlbauer toroidal core transformer, model 825046, features dual primary voltages of 2 x 115 V and secondary voltages of 2 x 18 V AC, with a power capacity of 250 VA and a current of 6.95 A. This transformer is designed for use in automation systems and can also function as a halogen transformer. Its toroidal core design ensures efficient energy conversion with minimal electromagnetic interference, making it ideal for sensitive electronic applications.

Type	Toroidal core transformer
Primary Voltage	2 x 115 V
Secondary Voltage	2 x 18 V AC
Power Rating	250VA
Number of Outputs	2
Cable Length	20.00cm
Connection	Open end cable
Design Type	Remaining hole casting (pressure-free mounting)
Diameter	129mm
Dimensions	(Ø x H) 129 mm x 55 mm
Frequency	50 - 60Hz
Height	55mm
Insulation class	B
Max. ambient temperature	+60°C
Number of Inputs	2
Output Current	6.95A
Protection Class	II (prepared)
Standards	IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage	4400V
