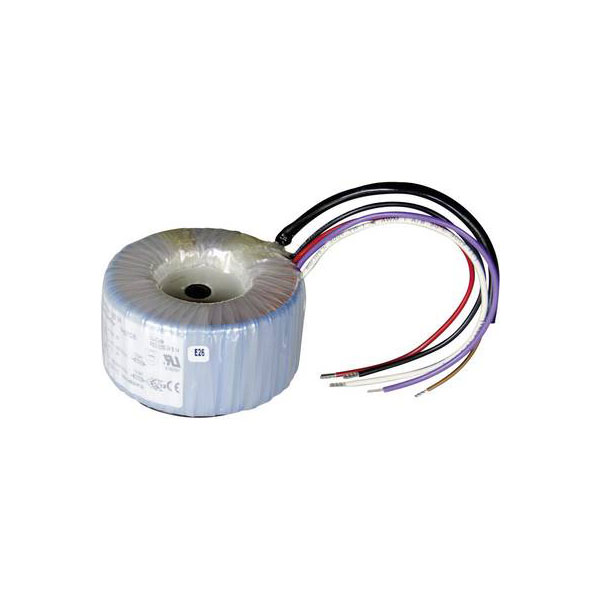

Sedlbauer 825026 Toroidal Transformer 230V/2x12V 100VA 4.17A Low EMI

Sedlbauer
Order Code:

12-9197

Brand: Sedlbauer MPN: 825026 EAN-13: 2050001587879
Qty Unit Price (Ex VAT)
1+ £62.67
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

The Sedlbauer 825026 is a toroidal core transformer designed with a primary voltage of 230 V and dual secondary outputs of 12 V AC, offering 100 VA power capacity and 4.17 A current. This transformer is commonly used in automation and halogen lighting systems due to its efficient energy transfer and compact size. As a product of Sedlbauer, it is known for its reliability and performance in various electrical applications.
Type Toroidal core transformer
(Ø) 90mm
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 90 mm x 55 mm
Frequency 50 - 60Hz
Height 55mm
Input Voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 1
Number of Outputs 2
Output Current 4.17A
Output Voltage 12V AC
Output voltage (number x voltage) 2 x 12 V AC
Power 100VA
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
