Sedlbauer 825025 Toroidal Transformer 230V/9V 100VA Low Magnetic Field

Sedlbauer
Order Code:

12-9196

Brand: Sedlbauer MPN: 825025 EAN-13: 2050001587855
Qty Unit Price (Ex VAT)
1+ £60.69
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
16 in stock, despatched in 4 working days

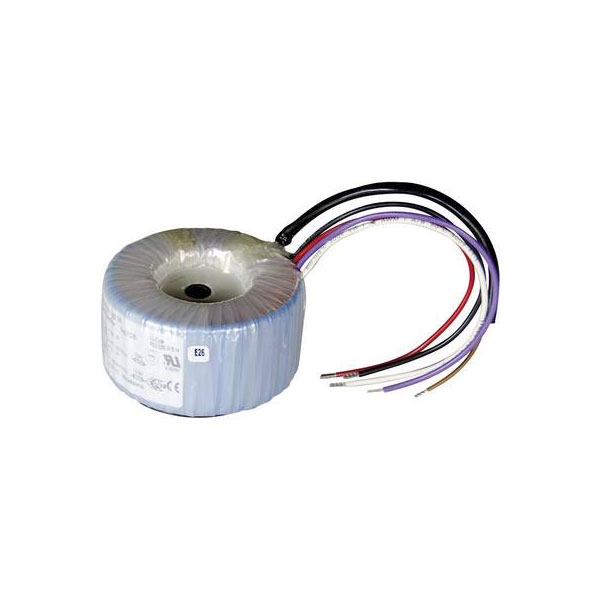

The Sedlbauer 825025 is a toroidal core transformer designed for automation and halogen applications. It features an input of 1 x 230 V and outputs 2 x 9 V AC, with a power rating of 100 VA and a current capacity of 5.56 A. This transformer is suitable for applications requiring efficient power transfer and compact design.
Type Toroidal core transformer
Power Rating 100VA
Number of Outputs 2
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Diameter 90mm
Dimensions (Ø x H) 90 mm x 55 mm
Frequency 50 - 60Hz
Height 55mm
Input Voltage 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 1
Output Current 5.56A
Output Voltage 2 x 9 V AC
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
