Sedlbauer 825021 Toroidal Transformer 230V/2x15V 75VA 2.50A Auto-Reset

Sedlbauer
Order Code:

12-9192

Brand: Sedlbauer MPN: 825021 EAN-13: 4064161264127
Qty Unit Price (Ex VAT)
1+ £52.15
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

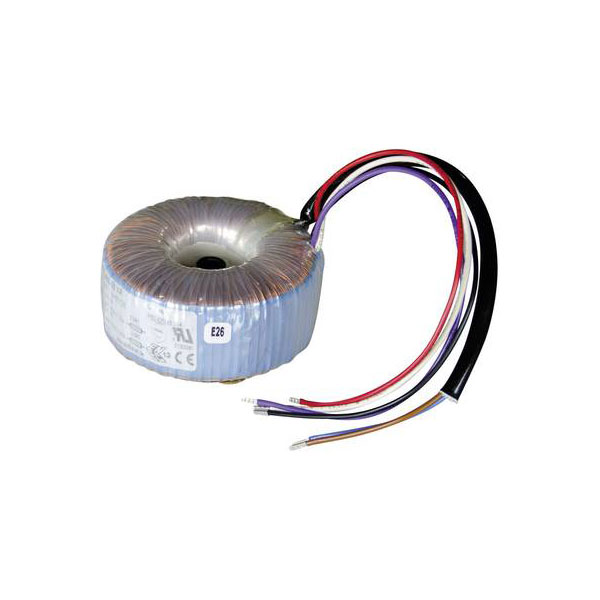

The Sedlbauer 825021 toroidal core transformer is designed with a primary voltage of 1 x 230 V and secondary outputs of 2 x 15 V AC, delivering a power rating of 75 VA. It supports a current of 2.50 A and is typically used in automation systems and as a halogen transformer. The toroidal design is known for its efficiency and reduced electromagnetic interference.
Type Toroidal core transformer
(Ø) 92mm
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 92 mm x 40 mm
Frequency 50 - 60Hz
Height 40mm
Input Voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 1
Number of Outputs 2
Output Current 2.50A
Output Voltage 15V AC
Output voltage (number x voltage) 2 x 15 V AC
Power 75VA
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
