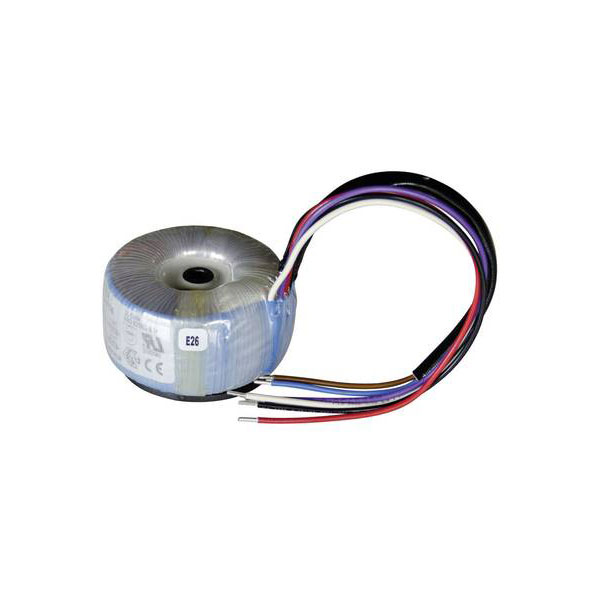

Sedlbauer 825010 Toroidal Transformer 230V to 2x18V AC 30VA 0.84A

Sedlbauer
Order Code:

12-9186

Brand: Sedlbauer MPN: 825010 EAN-13: 2050001587749
Qty Unit Price (Ex VAT)
1+ £39.71
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The Sedlbauer 825010 is a toroidal core transformer designed to convert 230 V AC input to dual 18 V AC outputs, with a power rating of 30 VA and a current capacity of 0.84 A. Manufactured by Sedlbauer, this transformer is compact and efficient, making it ideal for applications in automation systems and halogen lighting. Its toroidal core provides low electromagnetic interference and high energy efficiency.
Type Toroidal core transformer
(Ø) 69mm
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 69 mm x 39 mm
Frequency 50 - 60Hz
Height 39mm
Input Voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 1
Number of Outputs 2
Output Current 0.84A
Output Voltage 18V AC
Output voltage (number x voltage) 2 x 18 V AC
Power 30VA
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
