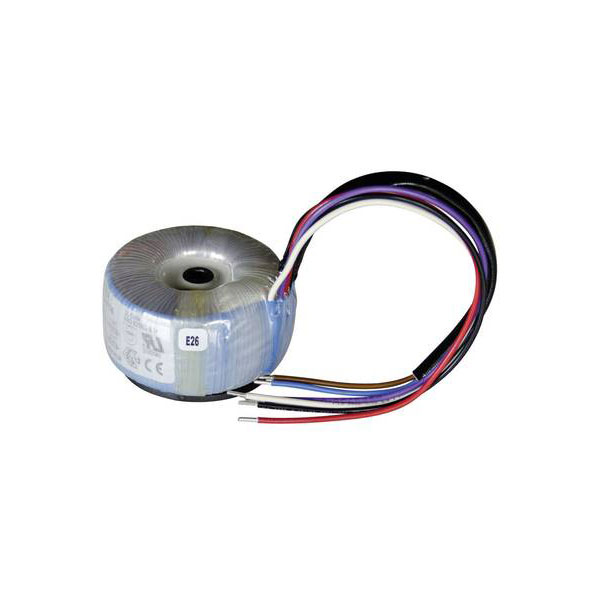

Sedlbauer 825001 Toroidal Transformer 230V to 2x9V 15VA Auto-Reset Temp

Sedlbauer
Order Code:

12-9181

Brand: Sedlbauer MPN: 825001 EAN-13: 2050001587671
Qty Unit Price (Ex VAT)
1+ £34.82
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
9 in stock, despatched in 4 working days

The Sedlbauer 825001 is a toroidal core transformer designed for automation applications. It features a primary voltage of 230 V and dual secondary outputs of 9 V AC, with a power rating of 15 VA and a current rating of 0.84 A. This transformer is typically used in tasks requiring efficient voltage conversion, such as powering halogen lighting systems.
Type Toroidal core transformer
(Ø) 60mm
Cable Length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 60 mm x 39 mm
Frequency 50 - 60Hz
Height 39mm
Input Voltage 230V
Input voltage (number x voltage) 1 x 230 V
Insulation class B
Max. ambient temperature +60°C
Number of Inputs 1
Number of Outputs 2
Output Current 0.84A
Output Voltage 9V AC
Output voltage (number x voltage) 2 x 9 V AC
Power 15VA
Protection Class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
