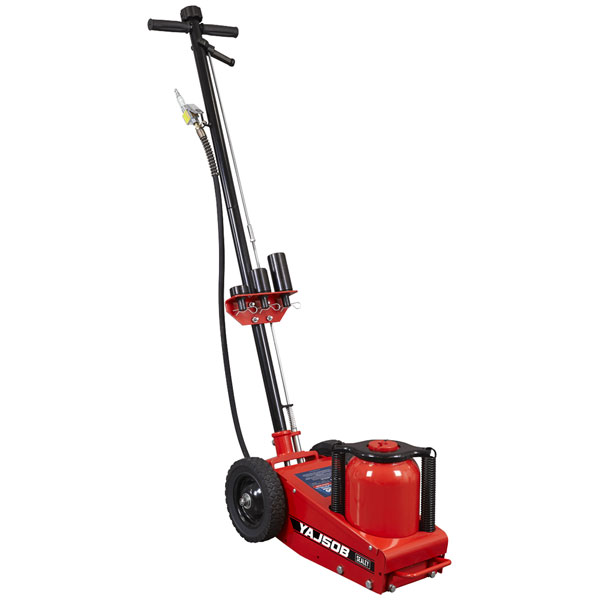

Sealey YAJ50B Air Operated Single Stage Trolley Jack 50 Tonne

Ideal for workshop or roadside use, this jack takes the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle and multi-position locking handle. Supplied with extensions that close the gap between the saddle of the jack and the jacking point. See table for detailed specification.

• Min./Max. Height: 288/550mm.
• Air Consumption: 9.5cfm.
• Powerful and reliable.
• Ideal for workshop or roadside use.
• Features dead man’s controls and multi-position locking handle.
• Takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• Supplied with 20/60/100mm extensions to close the gap between the saddle of the jack and the jacking point.
• Model No. YAJ50B

Type	Air Bottle Jack
Load Capacity	50tonne
Air Consumption	9.5cfm
Capacity	50 Tonne
Chassis Length	595mm
Extensions	20/60/100mm
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne)	650/50mm
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne)	595mm
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne)	625mm
Minimum Saddle Height	288mm
Nett Weight	52.9kg
Piston Stroke	155mm
Screw Extension	107mm
Working Pressure	109-123psi
