Sealey VS2005 Diesel Injector Puller - Citroen, Peugeot

Comprehensive set for removing Citroen/Peugeot/Fiat 2.0/2.2HDi 16v fuel injectors. Allows the removal of seized injectors without the need to remove the cylinder head. Bridge fits perfectly on the cylinder head preventing damage to the area surrounding the injector. Supplied in storage case.

• Comprehensive set for removing Citroen/Peugeot/Fiat 2.0/2.2HDi 16v fuel injectors.
• Allows the removal of seized injectors without the need to remove the cylinder head.
• Bridge fits perfectly on the cylinder head preventing damage to the area surrounding the injector.
• Supplied in storage case.
• Model No. VS2005

Type	Injector puller set
Citroen 2.0HDi	C4 (04-13), C4 Picasso/Grand Picasso (06-13), DS4 (11-13), C5 (04-15), DS5 (12-15), C8 (02-10), Dispatch (99-12), Jumpy III (07-12)
Citroen 2.2HDi	C5 (07-09), C6 (06-11), C8 (02-10), C-Crosser (07-12)

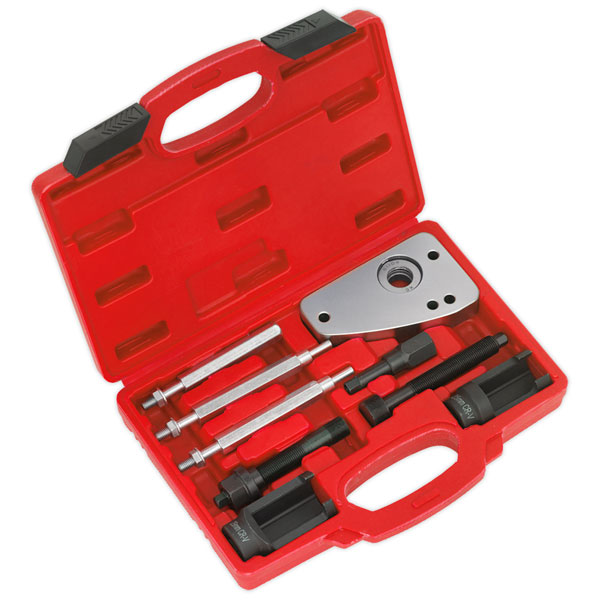

Contents	Pulling Bridge, Bridge Leg (x3), 10mm Security Hex Key, Injector Cap Sockets; Ø25, Ø29mm, Injector Force Screw Threads; Ø17mm Male x 1mm Pitch, Ø25mm x 1mm Pitch, Injector Force Screw Nut
Engine Code(s)	DW10ATD (RHY), DW10ATED (RHS, RHW, RHZ), DW10ATED4/L4 (RHT), DW10ATED4 (RHM, RHW), DW10BTED/L3 (RHX, RHZ), DW10BTED (RHX), DW10BTED4 (RHF, RHJ, RHL, RHR), DW10C (RHD, RHH), DW10CD (AHZ), DW10CTED4 (RHC, RHD, RHE, RHH, RH02), DW10FD (AHX), DW10JATED4 (RHM, RHW), DW10JTED4 (RHW), DW10TD (RHY, RHZ), DW10UTD (RHV), DW10UTED4 (RHG, RHK), DW12ATED (4HX, 4HZ), DW12ATED4/L4 (4HW), DW12BTED4 (4HP, 4HR, 4HS, 4HT, 4HX), DW12CTED4 (4HL), DW12MTED4 (4HK, 4HN), DW12TED4 (4HX), DW12UTED (4HY)
Fiat 2.0D Multijet	Scudo (07-13)
Nett Weight	3.44kg
Peugeot 2.0HDi	307 (01-09), 308 (07-16), 3008 (02-15), 407 (04-12), 508 (11-16), 5008 (09-16), 607 (00-11), RCZ (10-15), Expert III (07-16)
Peugeot 2.2HDi	508 (11-15), 4007 (07-12), 607 (00-09), 807 (02-10)
