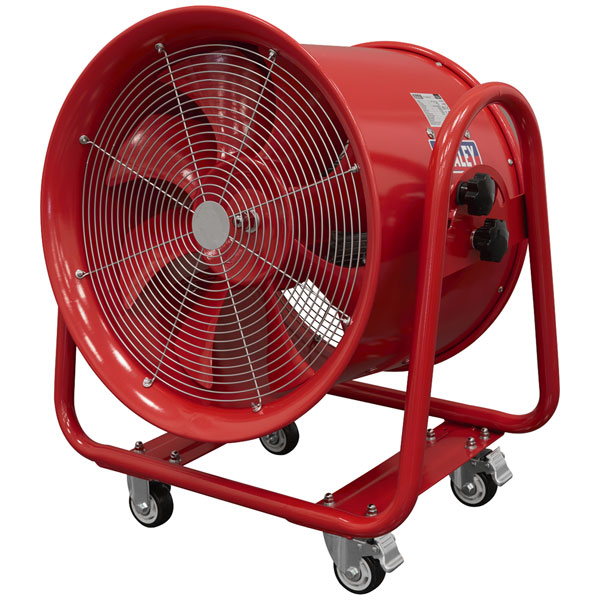

Ideal for use where high-volume air delivery is required. Especially suitable for ventilating confined, hot or fume-laden work sites, typically found in boats, cable/pipe ducts and roof spaces; creating a cleaner more pleasant working environment. Lightweight and robust construction gives the portability and durability necessary in the workplace. Mounted on a steel frame with four castor wheels. Supplied with 5m ducting, optional 10m length available.
- Ideal for use where high-volume air delivery is required.
- Especially designed to easily ventilate hot or fume-laden work areas.
- Supplied with 5m ducting (VEN500AK1).
- The air mover/ventilator can be used across multiple industries including, but not exclusive to; marine, roof spaces and building sites, cable/pipe ducts and workshops.
- Motor: 1100W/230V.
- Airflow: 9900m³/hr(5814cfm).
- Static Pressure: 4.5mbar.
- Lightweight.
- Mounted on a frame with 4 castor wheels making it easily portable.
- Optional 10m ducting (VEN500AK2) available, but not included.
- Fitted with 2.3m cable and 3-pin plug.
- Ducting supplied is compatible with other leading manufacturers products with Ø500mm.
- Model No. VEN500
| Type |
Air Treatment |
| Airflow |
9900m³/hr(5814cfm) - 165m³/min |
| Efficiency Category |
Static |
| Efficiency Grade |
40 |
| Fan diameter |
Ø500mm |
| Fan speed |
1400rpm |
| Maximum Air Velocity |
14m/s |
| Maximum Airflow |
9900m³/hr(5,814cfm), 165m³/min |
| Measurement Category |
C |
| Nett Weight |
52kg |
| Noise Level |
74dB(A) |
| Note |
RPM - 1420 r/min |
| Overall Efficiency (n) |
35.94% |
| Power |
1100W |
| Replacement Parts |
VEN500AK1/VEN500AK2 |
| Static Pressure |
4.5mbar |
| Supply |
230 |
