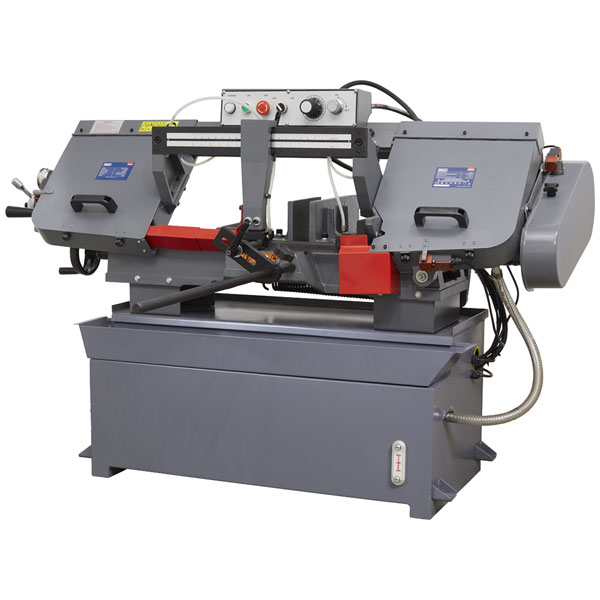

Sealey SM353CE Bandsaw 400mm Horizontal Hydraulic Arm

Heavy-duty 1500W single phase electric motor with over-current sensor to cut power in the event of blade jam. Saw arm fitted with hydraulic damping to prevent it being dropped onto the workpiece and to ensure smooth cutting performance. Coolant system prolongs blade life and makes cutting smoother and more precise.

• 24V System for coolant pump and motor controls gives added safety to operator.
• Heavy-duty single phase 1500W motor.
• Large cutting capacity.
• Ideal for Industrial and Agricultural engineering applications.
• Precision machined cast iron saw bed.
• Hydraulic feed saw arm gives greater cutting control allowing clean results.
• Over-current sensor on motor cuts power in the event of blade jam.
• All blade and pulley covers protected by safety switches.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Model No. SM353CE

Voltage	230V
Type	Hydraulic Arm Bandsaw
Battery Included	N/A
Power	1120W
Blade Length	3.035m
Blade size	3035 x 27 x 0.9mm
Blade Speeds	21, 33, 42 ,59m/min
Capacity	400mm
Capacity 45° - Round	Ø152mm
Capacity 45° - Square/Rectangular (H x W)	228 x 152mm
Capacity 90° - Round	Ø228mm
Capacity 90° - Square/Rectangular (H x W)	228 x 335mm
Lifetime Warranty	No
Motor Power	1500W
Nett Weight	279kg
No load speed	1400rpm
Supply	230V ~ 50Hz
