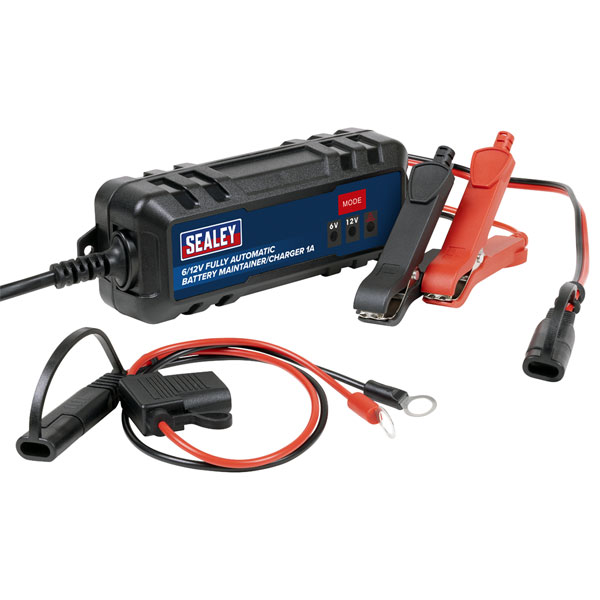

Fully automatic 1A 6/12V 5-stage intelligent battery charger, designed for charging and maintaining a variety of batteries including VRLA (Lead Acid), GEL, AGM/EFB and Leisure on 6/12V systems. Suitable for trickle charging a variety of batteries, the charger reacts continuously to battery condition and delivers whatever charge rate is required. Microprocessors constantly regulate the voltage pattern allowing the battery to be recharged fully and safely without fear of overcharging. Once fully charged ‘float’ mode is activated and the charger enters a monitoring status. Supplied with SAE “quick” connectors on leads and battery terminal eyelets. Safety features include reverse polarity, short circuit, over temperature, over voltage and overcharging protection. Easy-to-read LED indicator will illuminate during the charging process.
- Fully automatic 1A 6/12V 5-stage intelligent battery charger, designed for charging and maintaining a variety of batteries including VRLA (Lead Acid), GEL, AGM/EFB and Leisure on 6/12V systems.
- Suitable for trickle charging a variety of batteries, charger reacts continuously to battery condition and delivers whatever charge rate is required.
- Microprocessor constantly regulates the voltage pattern allowing the battery to be recharged fully and safely without fear of overcharging. Once fully charged ‘float’ mode is activated and the charger enters a monitoring status.
- Supplied with SAE “quick” connectors on leads and battery terminal eyelets.
- Safety features include reverse polarity, short circuit, over temperature, over voltage and overcharging protection.
- Easy-to-read LED indicator will illuminate during the charging process.
- Model No. SBC1
| Type |
Battery Maintenance |
| AGM/EFB |
Yes |
| Battery Maintain |
4-120Ah |
| Battery Range |
4-30Ah |
| Battery Support/DC Supply Mode |
No |
| Cable & Clamp Length |
1.5m |
| Charger Type Traditional (T) Intelligent (HF) |
HF |
| GEL |
Yes |
| IP Rating |
IP65 |
| Leisure (Deep Discharge) |
Yes |
| Lithium |
No |
| Max Size Battery in 12hrs from Discharged |
20Ah. |
| Nett Weight |
0.35kg |
| Outpt Start Peak |
N/A |
| Output |
6/12V |
| Output Charge Peak |
1A |
| Plug Type |
3-Pin |
| Power |
20W |
| Power Supply Cable Length |
1.5m |
| Supply (Current) |
13A |
| Supply (Voltage) |
230V |
| VRLA (Lead Acid) |
Yes |
| Weight |
0.35kg |
| Zero Volt Charging |
No |
