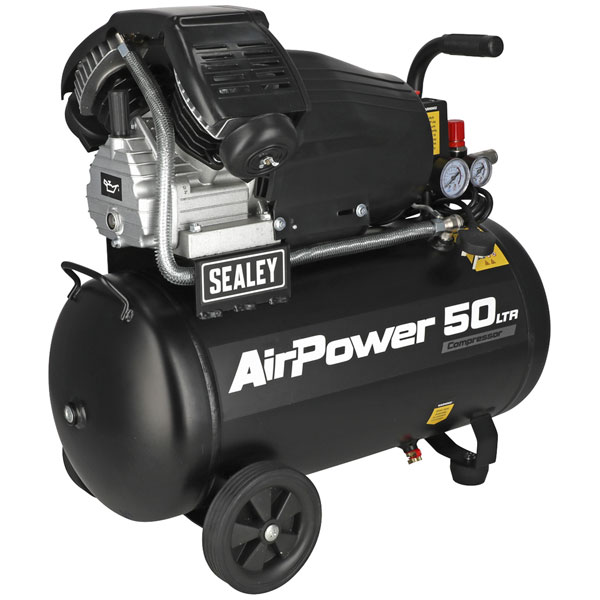

Sealey SAC5030VA 50L V-Twin Direct Drive Air Compressor 3hp

V-Twin pump aluminium cylinder head with cast iron cylinder gives added resistance to wear. Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation. Suitable for general-purpose workshop applications. Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures. Fitted with 3-pin plug.

• Air Displacement: 12.4cfm(350L/min).
• Maximum Free Air Delivery: 7cfm(198L/min).
• Maximum Pressure: 116psi(8bar).
• V-Twin pump aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.
• Suitable for general-purpose workshop applications.
• Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• Fitted with 3-pin plug.
• Model No. SAC5030VA

Type	Direct Drive
Capacity	50L
Maximum Pressure	116psi(8bar)
Air Displacement cfm(L/min)	12.4cfm(350L/min)
Maximum Free Air Delivery cfm(L/min)	7cfm(198L/min)
Minimum Rated Supply	13A
Motor Output	3hp
Nett Weight	38.8kg
Noise Level	97dB
Oil Capacity	350ml
Outlet	Quick Release Coupling
Phase	1ph
Receiver Capacity	50L
Size (W x D x H)	705 x 335 x 610mm
Supply	230V/13A
