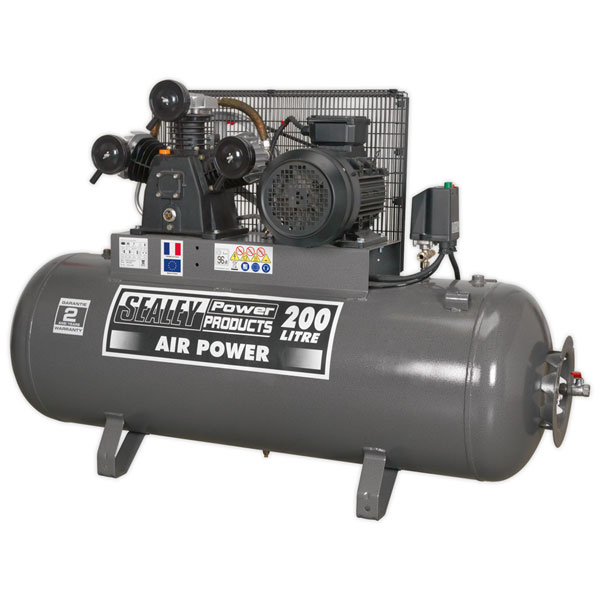

Sealey SAC32055B Compressor 200ltr Belt Drive 5.5hp

Heavy-duty 3-phase compressor suitable for the professional workshop. Triple cylinder pump system coupled with a 5.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models. Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual. Includes a drain valve for easy release of condensed water build-up in the tank.

• Air Displacement: 20.7cfm(585L/min).
• Maximum Free Air Delivery: 15.9cfm(450L/min).
• Maximum Pressure: 145psi(10bar).
• Heavy-duty 3-phase compressor suitable for the professional workshop.
• Triple cylinder pump system coupled with a 5.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.
• Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.
• Includes a drain valve for easy release of condensed water build-up in the tank.
• 3 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Model No. SAC32055B

Type	Belt Driven Air Compressor
Capacity	200L
Maximum Pressure	145psi(10bar)
Air Displacement cfm(L/min)	20.7(585)
Horsepower	5.5hp
Lifetime Warranty	No
Maximum Free Air Delivery cfm(L/min)	15.9(450)
Minimum Rated Supply	32A
Motor Output	5.5hp
Nett Weight	121kg
Noise Level	90
Oil Capacity	1.3L
Outlet	1/4"BSP
Phase	3ph
Receiver Capacity	200L
Size (W x D x H)	1430 x 500 x 970mm
Speed	1181rpm
Supply	400V/32A
