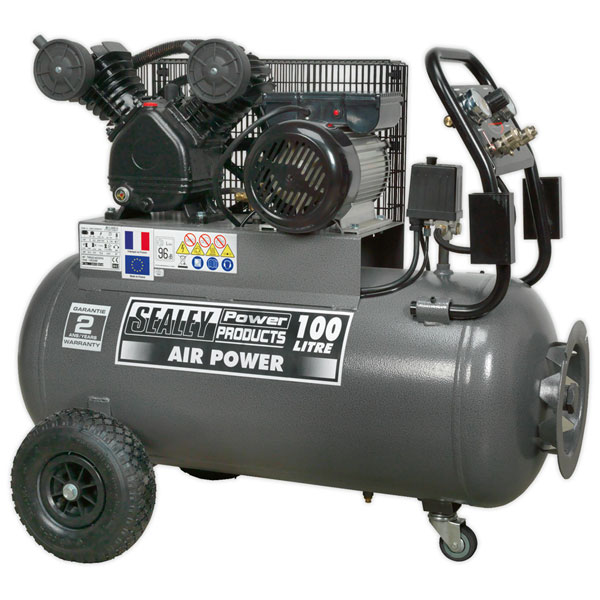

Sealey SAC3103B Compressor 100ltr Belt Drive 3hp with Front Control Panel

Twin capacitors and a centrifugal switch aid trouble-free start-up. Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life. Features an easy-to-use bespoke control panel with two outlets, one regulated and one direct. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Heavy-duty metal wheels fitted with needle roller bearings and puncture proof tyres. Supplied with hose reel to keep your workspace tidy. Includes a drain valve for easy release of condensed water build-up in the tank. Fitted with a bare 1.7m power cable for use with a 16A supply.

• Air Displacement: 12.3cfm(347L/min).
• Maximum Free Air Delivery: 9.5cfm(270L/min).
• Maximum Pressure: 145psi(10bar).
• Twin capacitors and a centrifugal switch aid trouble-free start-up.
• Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
• Features an easy-to-use bespoke control panel with two outlets, one regulated and one direct.
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• Heavy-duty metal wheels fitted with needle roller bearings and puncture proof tyres.
• Supplied with hose reel to keep your workspace tidy.
• Includes a drain valve for easy release of condensed water build-up in the tank.
• Fitted with a bare 1.7m power cable for use with a 16A supply.
• 3 Year guarantee*.
• Model No. SAC3103B

Type	Belt Driven Air Compressor
Capacity	100L
Maximum Pressure	145psi(10bar)
Voltage	230V
Air Displacement cfm(L/min)	12.3(347)
Horsepower	3hp
Lifetime Warranty	No
Maximum Free Air Delivery cfm(L/min)	9.5(270)
Minimum Rated Supply	16A
Motor Output	3hp
Nett Weight	72.4kg
Noise Level	88
Outlet	High-Flow Quick Release Coupling
Phase	1ph
Receiver Capacity	100L
Size (W x D x H)	980 x 500 x 800mm
Speed	1140rpm
Supply	230V/16A
