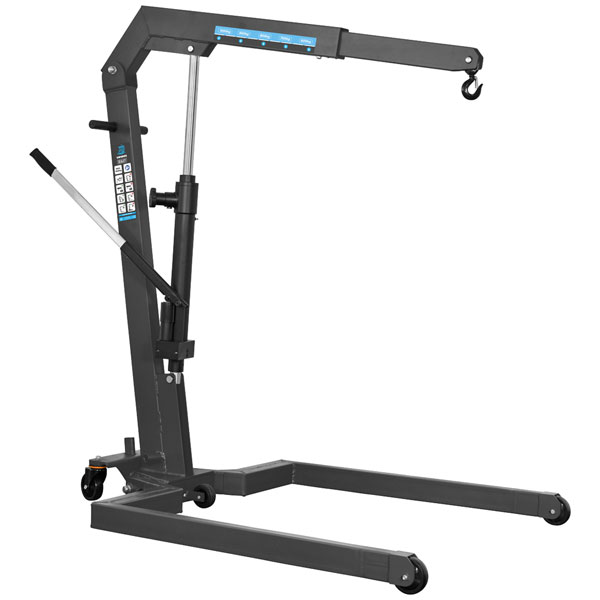

The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc.
Hand operated dead man's control to prevent accidental lowering.
Manually controlled descent speed.
The jib can be extended and locks in five positions between 960-1350mm.
The hydraulic unit and handle rotates by 200° aiding use where space is limited.
Strong nylon and fibreglass wheels front and rear.
Rear castor wheels come with brakes.
An additional wheel for ease of movement when folded, all are non floor marking.
FOLDING PARALLEL LEGS - The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc.
SAFETY RELEASE - Hand operated dead man's control to prevent accidental lowering.
CONTROLLABLE RELEASE - Manually controlled descent speed.
FIVE POSITION JIB - The jib can be extended and locks in five positions between 960-1350mm.
TURNING PUMP HANDLE - The hydraulic unit and handle rotates by 200° aiding use where space is limited.
NON FLOOR MARKING WHEELS - Strong nylon and fibreglass wheels front and rear. Rear castor wheels come with brakes. An additional wheel for ease of movement when folded, all are non floor marking.
3 Year GUARANTEE
| Type |
Engine Crane |
| Load Capacity |
1tonne |
| Height Legs Folded |
1550mm |
| Height of Frame |
105mm |
| Length |
1600mm |
| Length of Jib Position 1 |
960mm |
| Length of Jib Position 2 |
1053mm |
| Length of Jib Position 3 |
1152mm |
| Length of Jib Position 4 |
1250mm |
| Length of Jib Position 5 |
1350mm |
| Lifting Capacity in Position 1 |
1000kg |
| Lifting Capacity in Position 2 |
900kg |
| Lifting Capacity in Position 3 |
800kg |
| Lifting Capacity in Position 4 |
700kg |
| Lifting Capacity in Position 5 |
600kg |
| Max. Lift Ht at Jib Position 1 |
2080mm |
| Max. Lift Ht at Jib Position 2 |
2140mm |
| Max. Lift Ht at Jib Position 3 |
2190mm |
| Max. Lift Ht at Jib Position 4 |
2250mm |
| Max. Lift Ht at Jib Position 5 |
2300mm |
| Nett Weight |
96kg |
| Rear Width |
390mm |
| Width Front Frame |
1129mm |
| Width Inside Front Frame |
1025mm |
