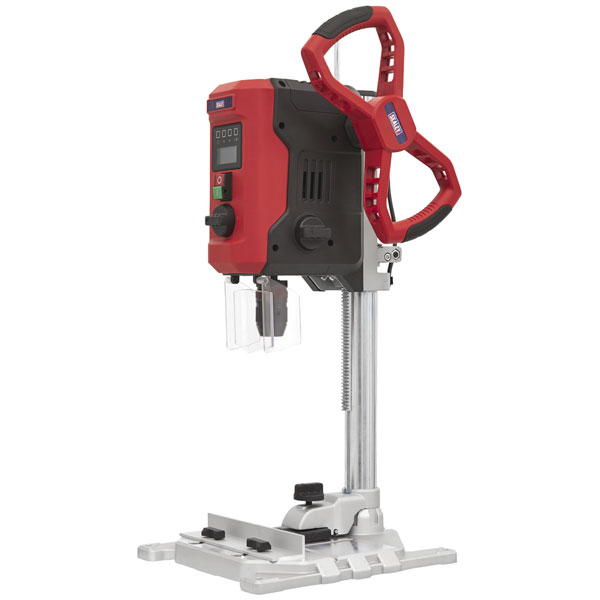

Sealey PDM10B Bench Mounting Pillar Drill inc Digital Display & Laser Guide 720W

Great workspace illumination and accuracy thanks to the integrated LED light and laser. Easy-to-read LCD display shows rpm as well as spindle travel for exact drilling depth. Parallel guide and vertical clamp on base. Superior control from two gears giving speed adjustment from 170 to 880rpm and 490 to 2600rpm. Convenient quick release chuck.

• Great workspace illumination and accuracy thanks to the integrated LED light and laser.
• Easy-to-read LCD display shows rpm as well as spindle travel for exact drilling depth (maximum 100mm stroke).
• Superior control from two gears giving speed adjustment from 170 to 880rpm and 490 to 2600rpm.
• Convenient quick release 1.5 to 13mm chuck.
• Maximum throat distance is 280mm.
• Wide (300 x 330mm) aluminium base gives increased stability and is corrosion-free.
• Integrated laser for easy and precise drilling.
• Integrated LED for perfect illumination.
• Digital display for accurate drilling.
• Model No. PDM10B

Type	Clamp
Base Size	330mm x 300mm
Collar Diameter	Ø43mm
Column Diameter	Ø46mm
Drilling Capacity (Chuck Size)	13mm
Integral Work Light	Yes, Including Laser Guide.
Maximum Distance Spindle to Base	280mm
Maximum Distance Spindle to Table	N/A
Motor Power (Start)	720W(900W)
Nett Weight	10.2kg
Number of Speeds	2 Variable Speed Range : First : 170-880/min. Second : 490-2600/min
Optional Accessories	N/A
Overall Height	760mm
Speed Range	170-880/min, 490-2600/min
Spindle Centre to Column	125mm
Spindle Nose Taper	N/A
Spindle Travel	100mm
Supply	230
Swing	250mm
Working Table Surface Size	N/A
