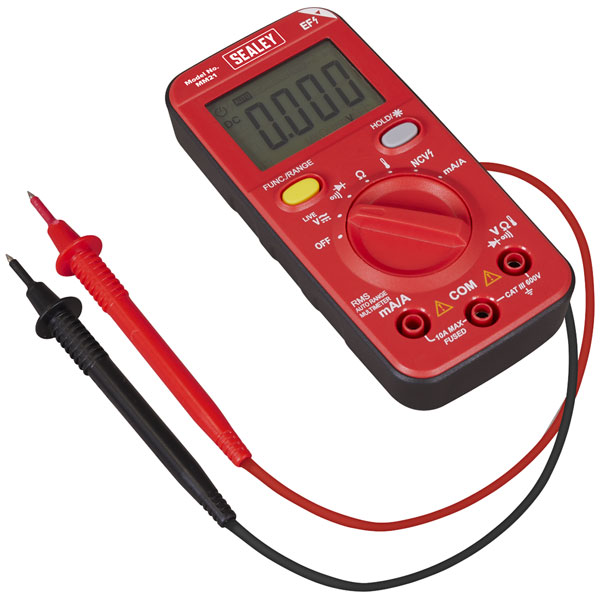

High-precision auto-ranging multimeter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features temperature measurement capability, data-hold and auto-power-off function. Non-contact voltage detection (NCVD) enables one-handed use. The live test feature can test for live feeds with a single probe. Supplied with probe including a thermocouple probe and integral upright stand for use on the workbench. Clear and easy-to-read LCD display.
- High-precision auto-ranging multimeter.
- Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
- Features temperature measurement capability, data-hold and auto-power-off function.
- Non-contact voltage detection (NCVD) enables one-handed use.
- Live test feature can test for live feeds with a single probe.
- Supplied with probes including a thermocouple probe and integral upright stand for use on the workbench.
- Clear and easy-to-read LCD display.
- Model No. MM21
| Type |
Electrics |
| AC Current (Accuracy) |
2000mA/10.00A
|
| AC Voltage (Accuracy) |
2V/20V/200V/600V
|
| Audible Continuity |
Yes |
| Auto Range |
ACV/DCV/Resistance/Continuity/Diode /Temperature/NCV/mA/A
|
| Backlit/Tourch |
Yes |
| Battery (Supplied) |
2 x 1.5V (AAA) |
| Capacitance (Accuracy) |
N/A |
| Conformity |
EN 61010-1 |
| DC Current (Accuracy) |
2000mA/10.00A
|
| DC Voltage (Accuracy) |
2V/20V/200V/600V
|
| Digits x Height |
4 x 17mm |
| Diode Test |
Yes |
| Duty Cycle |
No |
| Frequency (Accuracy) |
N/A |
| Hi-Impact Rubber Case |
No |
| Information |
Data-Hold, Auto-Power-Off, Integral Stand & Live Test |
| Low Battery Indicator |
Yes |
| Nett Weight |
0.138kg |
| Resistance (Accuracy) |
200O/2kO/20kO/200kO/2MO/20MO
|
| Size (L x W x D) |
130 x 62 x 30mm |
| Temperature (Accuracy) |
-200°C to 1200°C
-328°F to 2192°F
|
| Transistor Test |
No |
| Weight |
0.138kg |
