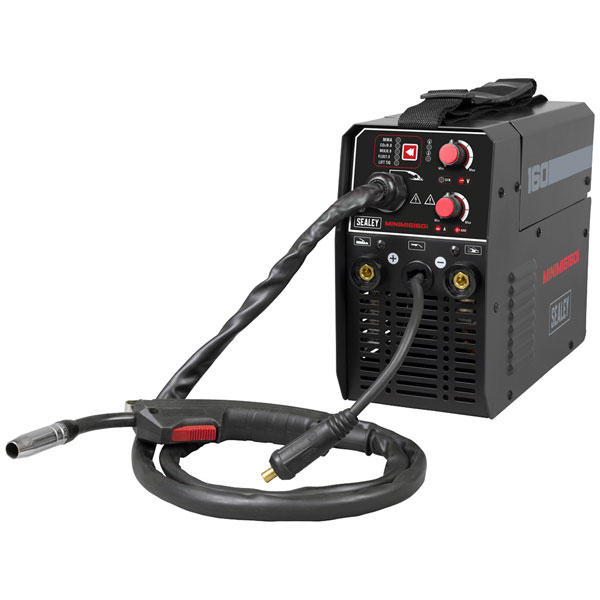

IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 160A. Multi-functional welder combining MIG/TIG and MMA applications into a single compact unit, ideal for workshops, garages, bodyshops and mobile technicians. Ultra-compact unit, weighing only 6.9kg, features a carry strap for portability, allowing easy transport to job sites. Featuring hot start, anti-stick, forced air cooling and thermal cut out protection. Unit can MIG weld using 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4mm electrode. Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
- IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 160A.
- Multi-functional welder combining MIG/TIG and MMA applications into a single compact unit, ideal for workshops, garages, bodyshops and mobile technicians.
- Ultra-compact unit, weighing only 6.9kg, features a carry strap for portability, allowing easy transport to job sites.
- Featuring hot start, anti-stick, forced air cooling and thermal cut out protection.
- Unit can MIG weld using 1kg Ø0.8/0.9/1mm solid wire and Ø0.8/0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø4mm electrode.
- Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
- Model No. MINIMIG160i
| Type |
Inverters |
| For Use With |
Sealey |
| Absorbed Power |
4.4kW |
| Duty Cycle MIG |
60% @ 160A, 100% @ 124A |
| Duty Cycle MMA/ARC |
60% @ 160A, 100% @ 124A |
| Duty Cycle TIG |
60% @ 160A, 100% @ 124A |
| Electrode Capacity |
1.6-4mm |
| Insulation class |
H |
| IP Rating |
IP21S |
| Nett Weight |
6.9kg |
| Note * |
To achieve maximum power a 16A supply may be required. |
| Supply |
230V 16A* |
| Welding Current |
10-160A |
| Wire Capacity |
1kg Ø0.8/0.9/1mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire |
