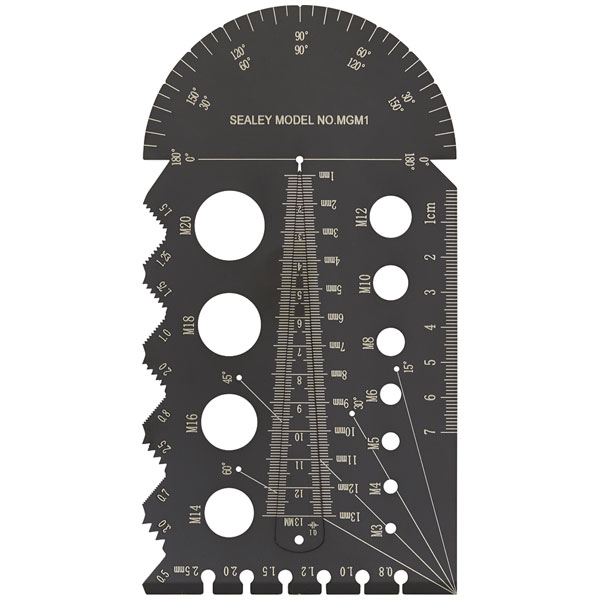

Sealey MGM1 Multi-Gauge - Metric

Stainless steel multifunction thread/pitch identification gauge. Easily identify the size of bolt, drill bit or tap that is required. Checks the thickness of washers and diameter of electric wire. Use as a set square, to measure angles 0-180° and as a ruler.

• Stainless steel metric multifunction thread/pitch identification gauge.
• Pitches: 3, 2.5, 2, 1.75, 1.5, 1.25, 1, 0.8, 0.7, 0.5mm.
• Bolt Screw Diameters: M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20.
• Wire Gauge: 0.8, 1, 1.2, 1.5, 2, 2.5mm.
• Square: 15°, 30°, 45°, 60°, 90°.
• Bolt Screw Length: 0-7cm.
• Tap/Drill Recommendation: M3-M20.
• Checks the thickness of washers and diameter of electric wire.
• Model No. MGM1

Bolt Screw Diameters	M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20
Nett Weight	137.5g
Pitches	3, 2.5, 2, 1.75, 1.5, 1.25, 1, 0.8, 0.7, 0.5mm (tpi)
Square	15°, 30°, 45°, 60°, 90°
Tap/Drill Recommendation	M3-M20
Wire Gauge	0.8, 1.0, 1.2, 1.5, 2.0, 2.5mm
