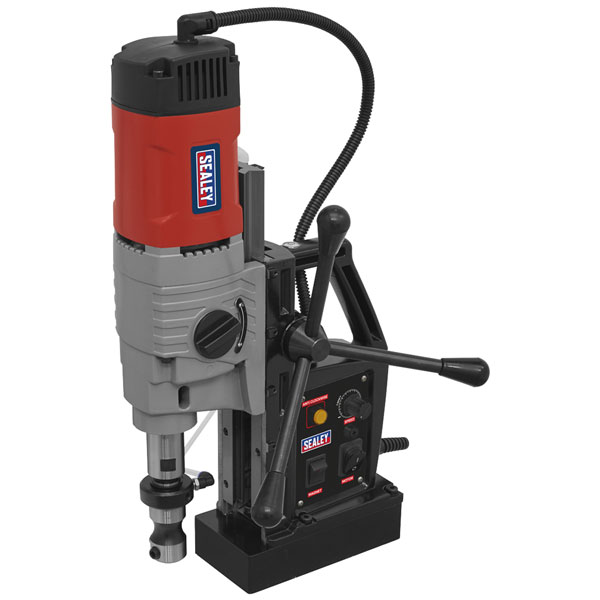

Sealey MAG60230VHD Magnetic Drilling Machine Heavy-Duty 60mm 230V

Manufactured using high quality components for performance and reliability. Made from heavy-duty die-cast magnesium alloy with a variable speed gearbox for greater accuracy. Fitted with a powerful magnet to ensure unit stays adhered at any angle and a double dovetail groove to increase the stroke length. Includes safety fixing strap and integrated coolant system to extend the life of cutters and increase the quality of the cut. Can be used with a 16mm twist drill chuck and M8 to M20 Tapping chucks. Designed for use in fabrication, construction and other applications when drilling/tapping ferrous metal.

• Manufactured using high quality components for performance and reliability.
• Made from heavy-duty die-cast magnesium alloy with a variable speed gearbox for greater accuracy.
• Fitted with a powerful magnet to ensure unit stays adhered at any angle and a double dovetail groove to increase the stroke length.
• Includes safety fixing strap and integrated coolant system to extend the life of cutters and increase the quality of the cut.
• Can be used with a 16mm twist drill chuck and M8 to M20 Tapping chucks.
• Designed for use in fabrication, construction and other applications when drilling/tapping ferrous metal.
• Model No. MAG60230VHD

Voltage	230V
Type	Magnetic Drill
Chuck Size	16mm
Speed Settings	Variable
Core Drill Diameter	Ø60mm
Cutting Depth	50mm
Magnet Adhesion	17000N
Magnetic Adhesion	17000N
Maximum Annular Cutter Capacity	Ø60mm
Maximum Cutter Depth	50mm
Morse Taper	MT3
Nett Weight	22.50kg
Power Supply	220V - 50Hz
Stroke Length	220mm
Supply	230V~50Hz
Tapping Drill Diameter	M8 - M20
Twist Drill Diameter	23mm
