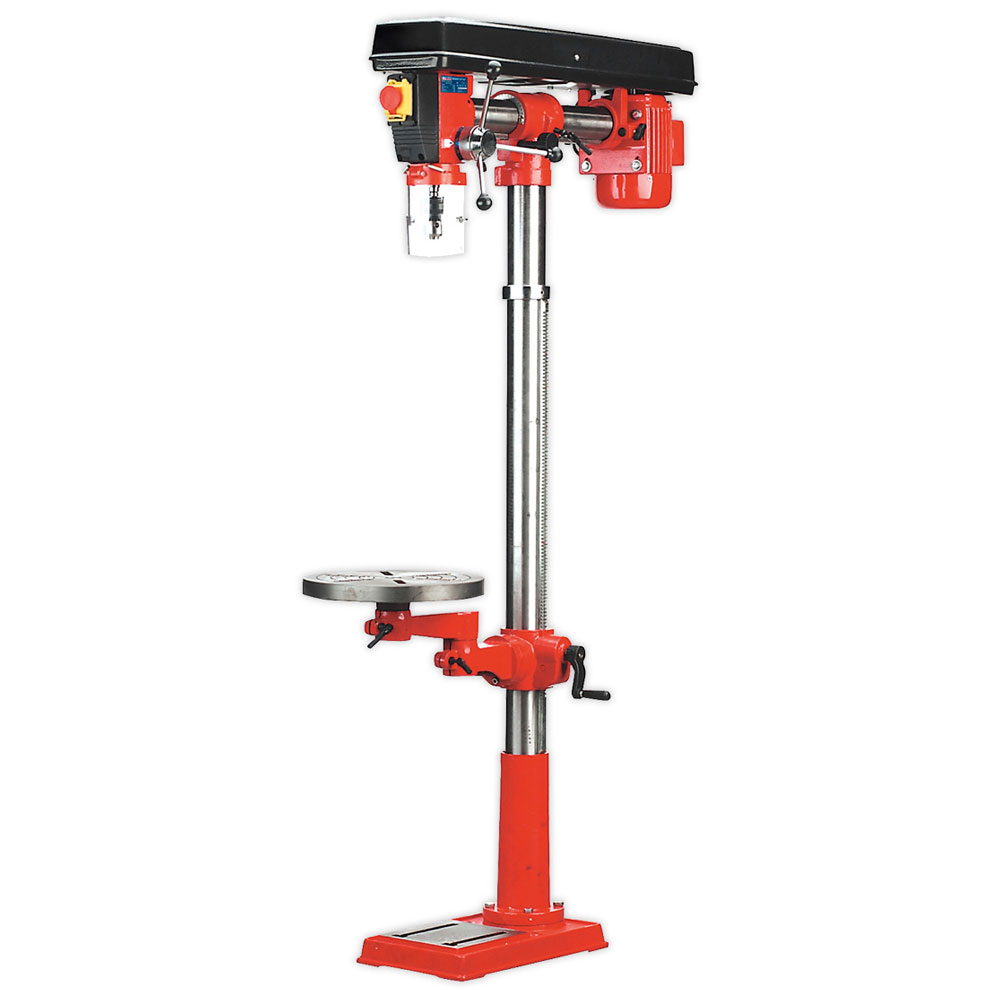

Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Also available as bench mounting type - GDM790BR.
Model No GDM1630FR Base Size: 420 x 250mm Collar Diameter: Ø60mm Column Diameter: Ø70mm Drilling Capacity (Chuck Size): 16mm Maximum Distance Spindle to Base: 1280mm Maximum Distance Spindle to Table: 830mm Motor Power (Start): 350W(550W) Nett Weight: 59kg Number of Speeds: 5 Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm Overall Height: 1620mm Radial Arm Travel: 285mm Speed Range: 500-2450rpm Spindle Centre to Column: 420mm Spindle Nose Taper: MT2 Spindle Travel: 80mm Supply: 230V Swing: 840mm Working Base Surface Size: 210 x 190mm Working Table Surface Size: Ø310mm
Type
Floor pillar drill
Power
550W
Height
1.63m
Lifetime Warranty
No
