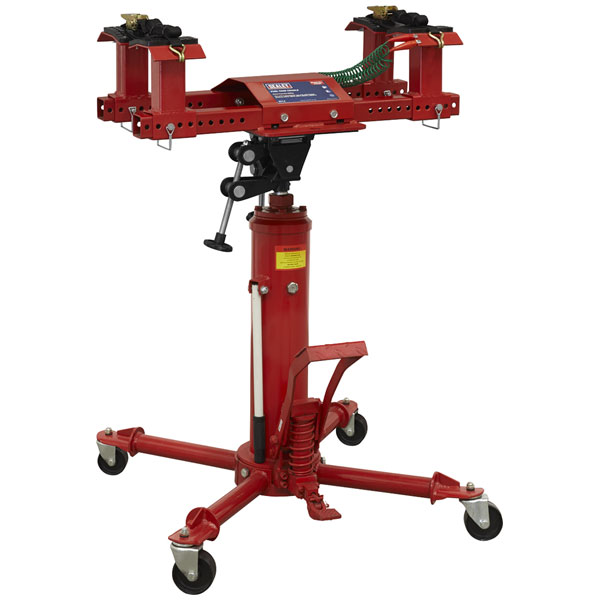

Package Includes: 500TTJ - 500kg Vertical Telescopic Transmission Jack.
FTC01 - Fuel Tank Cradle adapter for TTJ Transmission Jacks.
This item is heavy.
Extra assistance must be provided at the delivery point to help its safe delivery.
TELESCOPIC RAM - A two-stage ram reduces the clearance.
HIGH SPEED LIFT - Quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.
FOOT PEDAL OPERATION - Keeping hands free for fixings and adjustments.
SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
HIGHLY MANOEUVRABLE - Large, smooth running castors, make positioning quick and easy.
LARGE CAPACITY - Made for automotive and light commercial fuel tanks up to a capacity of 40 gallons (tank must be emptied before handling).
VERSATILE - Four adjustable support arms can be easily positioned to fit many shapes and sizes.
PROTECTION - Rubber pads protect the tank while being supported.
SAFE - Includes two load restraint straps.
EASY ASSEMBLY - The adapter can be fitted and removed from the transmission jack with ease as required.
| Type |
Fuel tank Cradle & Transmission Jack Kit |
| Load Capacity |
565kg |
| Fixed/Adjustable Saddle |
Adjustable |
| Maximum Saddle Height |
1875mm |
| Minimum Saddle Height |
890mm |
| Nett Weight |
97.5kg |
| Ram Extensions |
2 |
| Saddle Adjustment - Left-to-Right |
65mm |
| Saddle Tilt - Backward |
22° |
| Saddle Tilt - Forward |
28° |
