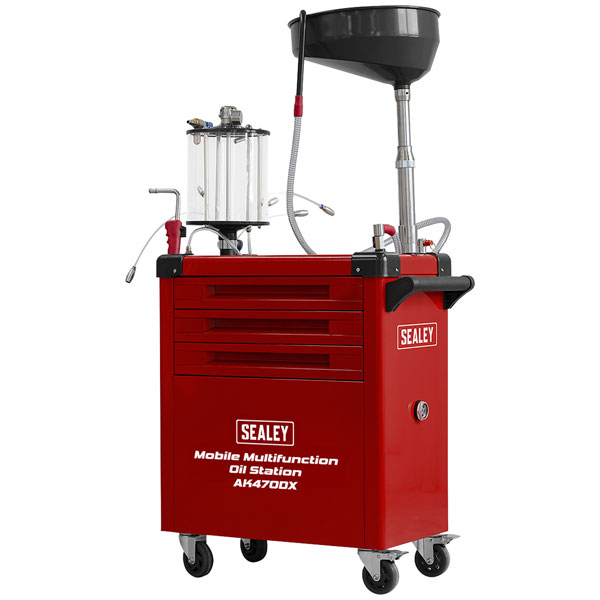

Three drawer mobile oil station keeps everything close to hand. 61pc Oil filter tool set included for removing all types of oil filters, and five suction probes for extracting oil via dipstick port (fits most vehicles). Clear chamber, making extracted oil visible for inspection and measuring before draining into reservoir. 70L Capacity allowing for multiple oil changes. An air supply is required.
- Three drawer mobile oil station keeps everything close to hand.
- 61-Piece oil filter tool set included for removing all types of oil filters, and five suction probes for extracting oil via dipstick port (fits most vehicles).
- Clear chamber, making extracted oil visible for inspection and measuring before draining into reservoir.
- 70L Capacity allowing for multiple oil changes.
- An air supply is required to use the workstation.
- Model No. AK470DX
| Type |
Oil Drainers |
| Material |
Various |
| Capacity |
150l/min |
| Air Consumption |
150L/Min |
| Air Supply Pressure |
7-8bar |
| Contents |
Oil Filter Wrenches: 64/65mm - 14 flutes 86/87mm -16 66/67mm -14 84mm-14 73/74mm-14 75/76mm-15 74mm-8 73/74mm-15 72/73mm-14 77mm-12 78-79mm-15 73mm-15 74/75mm-14 86mm-18 88/89mm-15 90/91mm-15 92/93mm-15 93/94mm-15 80mm-12 79/80mm-15 101mm-15 91/92mm-15 89mm-12 64/65mm-14 64/65mm-14 95.5mm-16 91.6mm-16 27mm-6 32mm-6 36mm-6 86.3mm-16 74.4mm-14 Ring Spanner 251mm Small Handcuff Wrench 65-85mm Medium Handcuff Wrench 80-100mm 9x square sockets (5/16"" - 3/8"" - 7 - 8 - 10 - 11 - 12 - 13 - 14 mm) 7x hex sockets (8 - 9 - 10 - 12 - 13 - 14 - 17 mm) 2x extension bar (3"" & 6"") 1x sliding T-bar 1x spline socket M16 1x torx socket T45 1x triangle socket 10 mm 1x socket 10 mm 1x L Wrench 1/2*250mm 1x Wrench 1/2*250mm 1x Wrench 1/2*125mm PVC Oil Suction Wands: 1x Ø8mm 1m long (6.5 L/Min. pumping rate) 1x Ø8mm 800mm long (6.5 L/Min. pumping rate) 1x Ø6mm 1m long (3.7 L/Min. pumping rate) 1x Ø6mm 800mm long (3.7 L/Min. pumping rate) 1x Ø5mm 800mm long (1.9 L/Min. pump |
| Cup Capacity |
10L |
| Maximum Height to Pan
|
1525mm |
| Minimum Height to Pan |
1410mm |
| Minimum/Maximum Air Pressure |
7-8bar |
| Nett Weight |
76kg |
| Oil Discharge Pressure |
0.18-0.2Mpa |
| Overall Dimensions (W x D x H) |
805 x 420 x 1410/1525mm (depending on pan height). |
| Pan Capacity |
20L |
| Tank Capacity |
70L |
| Working Oil Temperature |
40-60°C |
