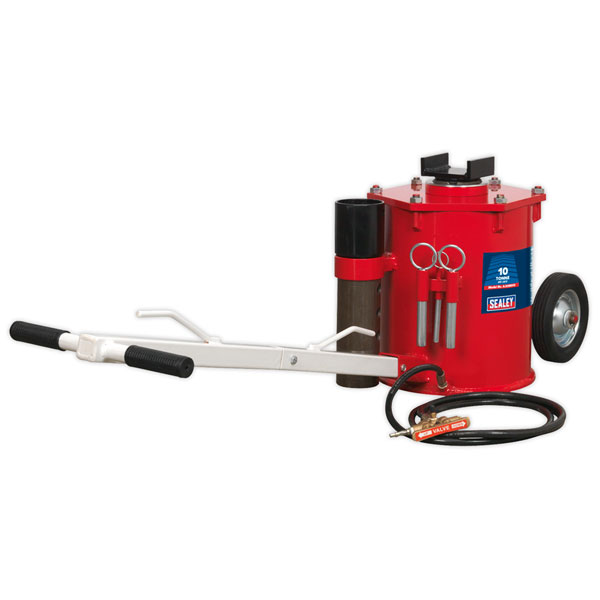

Sealey AJS10000 Air Jack 10tonne

Ideal for heavy plant, tractors and commercial vehicles. Multiple lifting and locking positions achieved using extension tube with multi-position pin support. Removable 2-piece handle aids easy storage. Requires 200psi of air pressure to reach optimum performance.

• Min./Max. Height: 447/1300mm.
• Extension: 561mm.
• Max. Capacity: 10 Tonne.
• Ideal for heavy plant, tractors and commercial vehicles.
• Multiple lifting and locking positions achieved using extension tube with multi-position pin support.
• Removable 2-piece handle aids easy storage.
• Requires 200psi of air pressure to reach optimum performance.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Model No. AJS10000

Type	Air Bottle Jack
Load Capacity	10tonne
Air Consumption	n/a
Air Pressure (PSI)	120
Capacity	10 Tonne
Chassis Length	n/a
Extensions	561mm
Lifting Capacity (kg)	6000
Max. capacity	10tonne
Maximum Height (inc. Extension)/Capacity	1300mm/10tonne
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne)	n/a
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne)	n/a
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne)	n/a
Maximum Length	1480mm
Minimum Saddle Height	447mm
Nett Weight	80kg
Overall Width	n/a
Piston Stroke	292mm
Width without Wheels	n/a
Working Pressure	200psi
