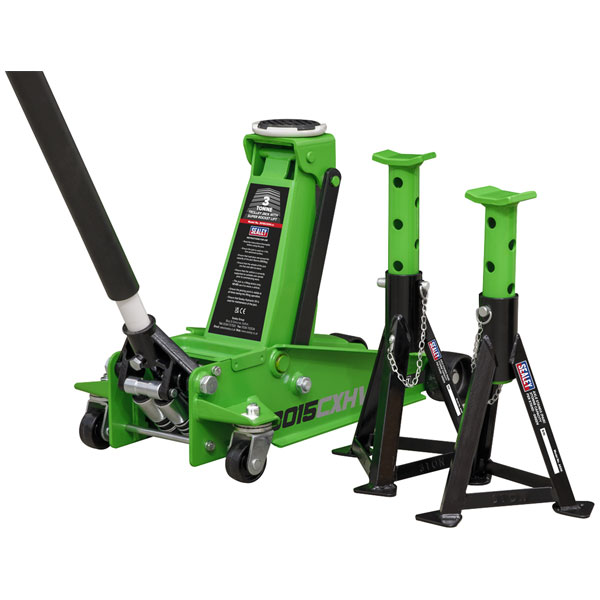

Single-piece hydraulic unit with heavy chassis design and large jacking saddle (Pad available as optional extra - Model No. JP17). Universal joint release mechanism allows safer, more controlled lowering of the jack. Twin piston Super Rocket Lift feature brings lifting arm straight into contact with the jacking point. Polyurethane wheels for smoother manoeuvrability and helps prevent damage to workshop floor. Fitted with safety overload valve and pump-through valve to prevent handle locking at maximum ram extension. Ideal for loaded vans up to 3.5 Tonne GVW. Supplied with Pin Type Axle Stands, 3 Tonne (3000kg) capacity per stand, 6 Tonne (6000kg) per pair. Min./Max. Working Height: 290/435mm.
- Min./Max. Saddle Height: 120/456mm.
- Single-piece hydraulic unit with heavy chassis design and large jacking saddle (pad available as optional extra - Model No. JP17).
- Universal joint release mechanism allows safer, more controlled lowering of the jack.
- Twin piston Super Rocket Lift feature brings lifting arm straight into contact with the jacking point.
- Polyurethane wheels for smoother manoeuvrability and helps prevent damage to workshop floor.
- Fitted with safety overload valve and pump-through valve to prevent handle locking at maximum ram extension.
- Ideal for loaded vans up to 3.5 Tonne GVW.
- Supplied with Pin Type Axle Stands, 3 Tonne (3000kg) capacity per stand (6 Tonne (6000kg) per pair).
- Min./Max. Working Height: 290/435mm.
- Model No. 3015CXHV
| Type |
Axle Stand |
| Load Capacity |
Jack - 3 Tonne, Axle Stands 3 Tonne per Stand |
| Capacity |
Jack - 3 Tonne, Axle Stands 3 Tonne per Stand |
| Consumable Parts |
JP17 |
| Length |
680mm |
| Maximum Chassis Height |
162mm |
| Maximum Saddle Height |
456mm |
| Maximum Working Height |
435mm |
| Minimum Saddle Height |
120mm |
| Minimum Working Height |
290mm |
| Nett Weight |
36.5kg |
| Warranty Information |
Backed by our 1-year guarantee, in addition to your statutory rights. Guarantee excludes general wear, tear and misuse. See full guarantee terms for details. |
| Weight |
31kg |
