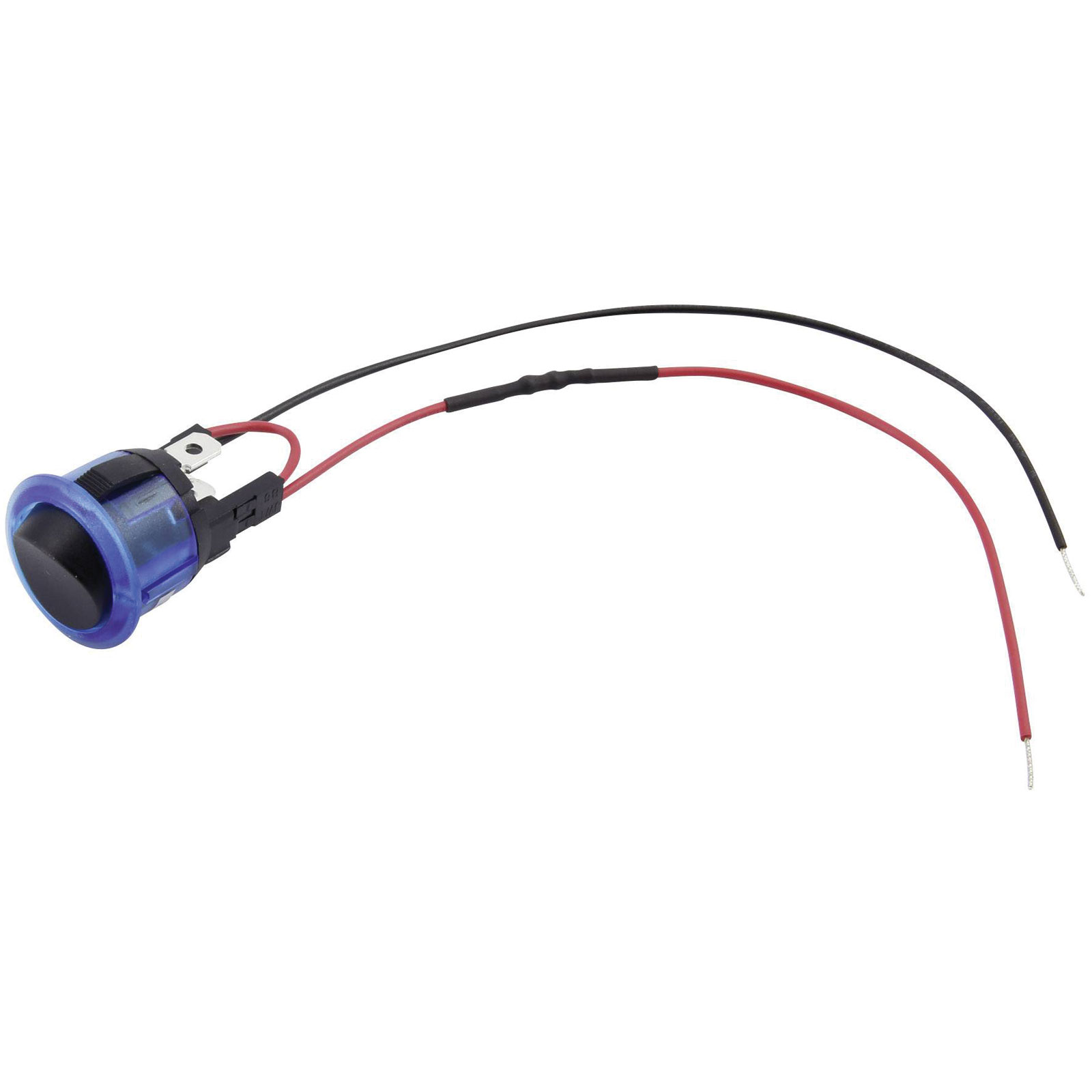

SCI R13-112AH Toggle Switch 28V DC 10A SPST 1xOn/Off Latch

Standard range

Order Code:

12-9135

Brand: SCI MPN: R13-112AH EAN-13: 2050004549287

RoHS Compliant
Country of Origin: China
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£2.06

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

2 in stock, despatched in 4 working days

Product Details
Data Sheets
Quick Quote

The SCI R13-112AH is a toggle switch designed for applications requiring a 28 V DC power supply and a 10 A current rating. This rocker switch features a simple ON-OFF latching mechanism, making it suitable for electronic or electrical devices that need reliable control. Manufactured by SCI, it is ideal for various applications in automotive, marine, and industrial settings.

Type	Toggle switch
(Ø)	23mm
Colour	Blue
Connection	Type C CEE 7/16 plug 4.8 mm
Contact resistance	50mΩ
Dielectric strength	1500 V/AC 1 minute
Dim	(Ø x L) 23 mm x 28.7 mm
Front panel cut-out	3 mm
Functions	latch
Insulation resistance	100MΩ
Length	28.7mm
Lighting type	LED
Max. temperature	+85°C
Min. temperature	-25°C
Misc Attribute	R13-112AH
Print motif	None
Recess depth	22.9mm
Recess diameter	19.8mm
RoHS-compliant	Yes
Switch position	1 x Off/On
Switching current (max.)	10A
Switching voltage	28V DC
