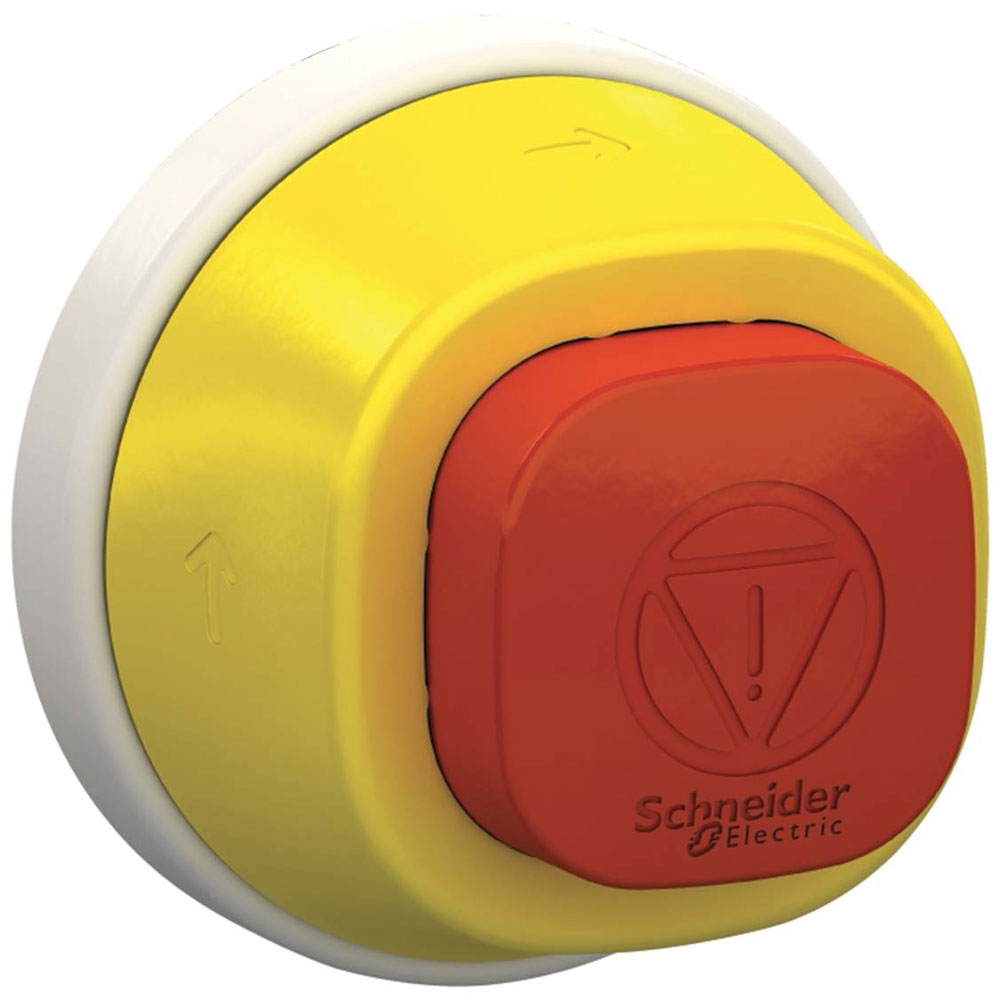

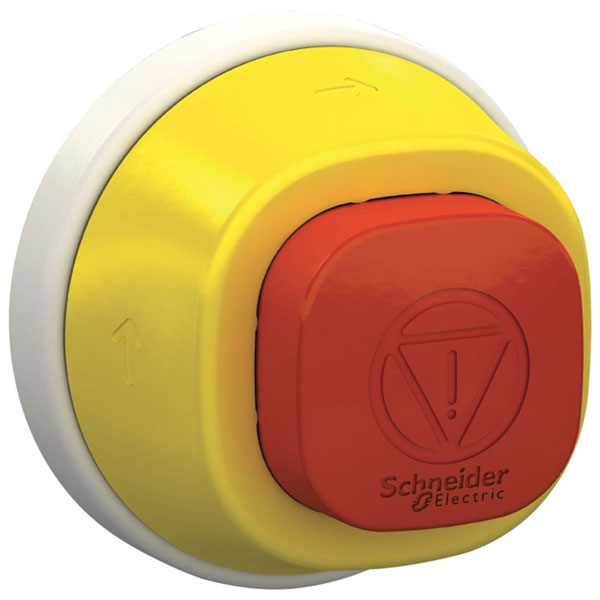

Schneider Electric ZB5AS84W3B Harmony XB5 24V EPO Switch IP66/67/69/69K

Schneider Electric
Order Code:

06-6807

Brand: Schneider Electric MPN: ZB5AS84W3B EAN-13: 3606489744977
Qty Unit Price (Ex VAT)
1+ £27.25
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The Schneider Electric ZB5AS84W3B is an emergency power off switch rated for 24 V, providing a vital safety feature for electrical systems. Designed for robust environments, it has a high ingress protection rating of IP66, IP67, IP69, and IP69K, making it suitable for industrial applications. Typical uses include machinery shut-off and emergency cut-off in potentially hazardous settings.
Type Kill switch/EPO switch
Nominal Voltage 24V
Colour button Red/green
Colour front ring Black
Construction type lens Round
Degree of protection (IP) IP66
Degree of protection (NEMA) 4X
Diameter cap 40mm
Dimensions (L x W x H) 40 x 60 x 60 mm
Durability 300000 cycles
Front panel thickness 6mm
Functions latch
Height 60mm
Height opening N/A
Hole diameter 22.5mm
Length 40mm
Material front ring Plastic
Max. temperature 70°C
Min. temperature -40°C
Misc Attribute 1 Mushroom head: Square 32 mm
Recess diameter 22.5mm
Spring-return false
Suitable for emergency stop true
Suitable for lighting true
Supply voltage lamp N/A
Switching function latching true
Type of button High
Unlocking mechanism Turn
Unlocking method Turn-release
Width 60mm
Width opening N/A
With front ring true
With lighting true
