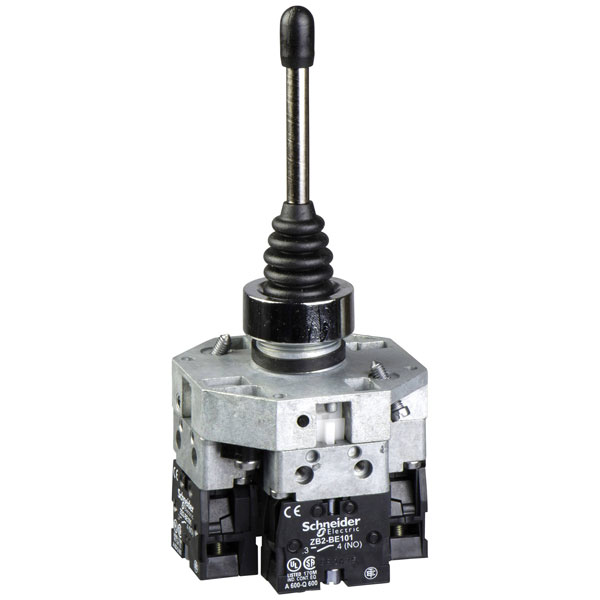

Schneider Electric XD2GA8421 Joystick Control Switch 4 positions

The Schneider Electric XD2GA8421 joystick is designed for precise control in various industrial applications. Its robust construction ensures durability and reliable performance. Commonly used in machine operation interfaces, this joystick facilitates smooth and accurate manoeuvrability.

Type	Joystick
Voltage Rating	240V AC / 250V DC
Current Rating (Amps)	10A
Analogue output signal configurable	false
Centre mounting, hole diameter	22mm
Coder	false
Colour front ring	Chrome
Degree of protection (IP)	IP66
Degree of protection (NEMA)	Other
Joy stick length	87mm
Locking in 0-position	false
Material front ring	Metal
Number of actuation directions	4
Number of make-and-break contacts per direction	0
Number of normally closed contacts per actuation direction	0
Number of normally open contacts per actuation direction	1
Number of Switch Positions	4
Rated operation current Ie at AC-21, 400 V	10A
Weight	0.40
With front ring	true
With retraction in 0-position	true
