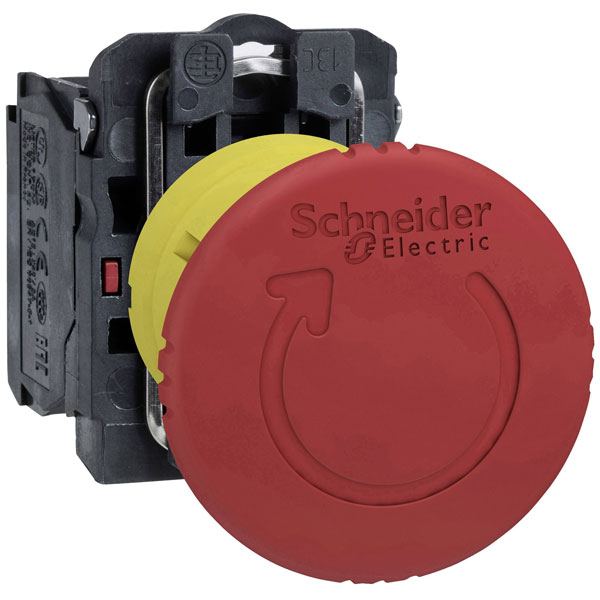

Schneider Electric XB5AS8442 kill Switch steel IP66/IP67/IP69/IP69K

The Schneider Electric XB5AS8442 is a robust kill switch featuring a front steel ring and reset function. It is lockable and designed for 120 V AC, 6 A applications, offering reliable performance with protection ratings of IP66, IP67, IP69, and IP69K. Ideal for emergency power off scenarios, it ensures safety in industrial environments.

Type	Kill switch/EPO switch
IP Rating	IP66
Button Diameter	40mm
Connection	Screw terminal
Connection type auxiliary circuit	Screw connection
Contact Configuration	1 breaker
Current Rating	6A
Degree of protection (NEMA)	Other
Diameter cap	40mm
Dimensions	(Ø x H) 40 mm x 43 mm
Durability	300000 cycles
Factory colour	Red
Height	43mm
Hole Diameter	22.5mm
Length	82mm
Maximum Temperature	+70°C
Min. temperature	-40°C
Mounting method	Built-in
Nominal Voltage	120V
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	0
Recess Diameter	22mm
Supply voltage lamp	N/A
Unlocking mechanism	Turn
Unlocking method	Turn-release
Width	40mm
With lighting	false
