Schneider Electric XALK178W3B140G Harmony XB5 EPO Switch IP66/IP69K

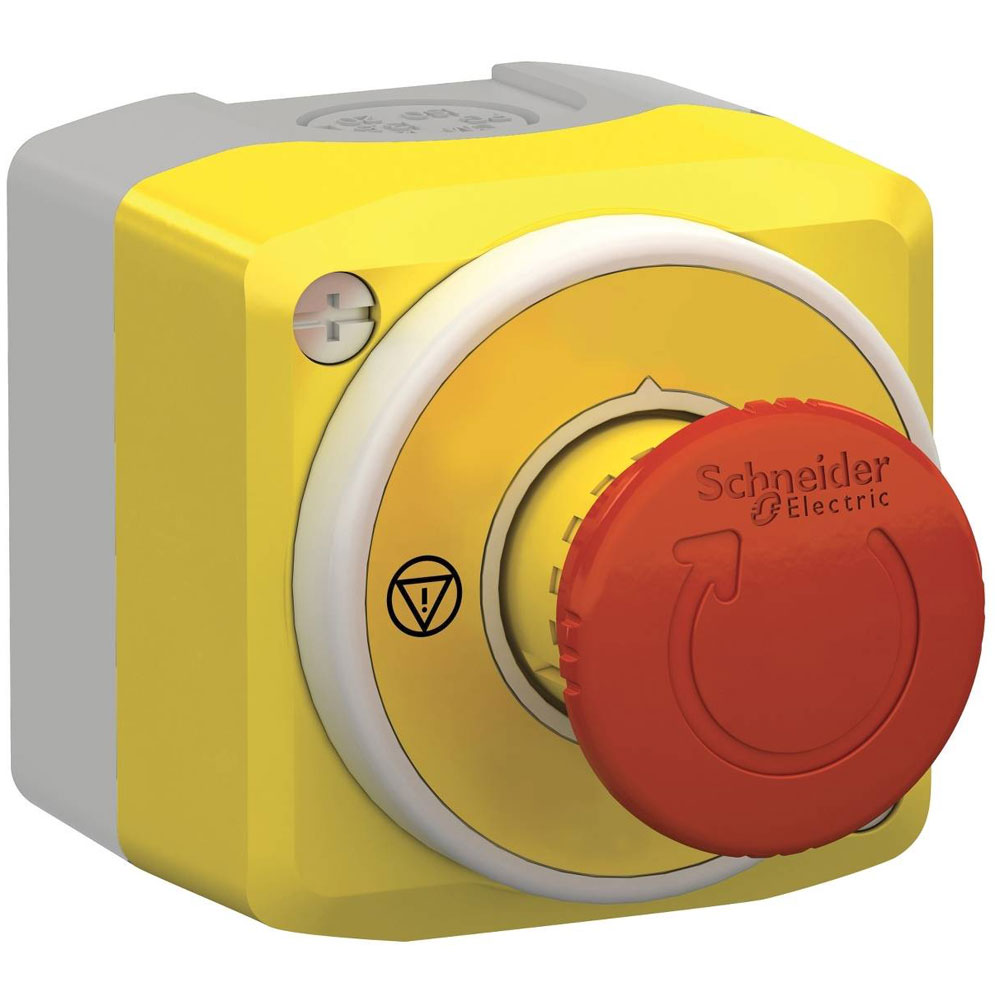

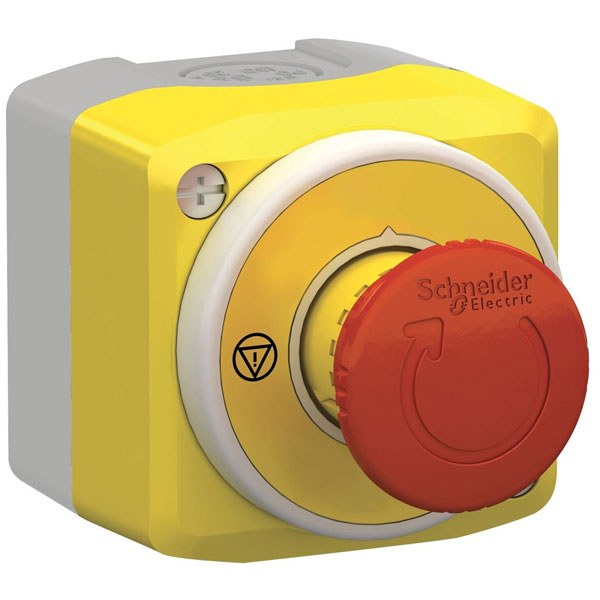

The Schneider Electric XALK178W3B140G is an emergency power-off switch housed in a durable enclosure. It offers high protection ratings of IP66, IP67, IP69, and IP69K, making it suitable for harsh environments. This kill switch is typically used in industrial settings to ensure immediate power cut-off for safety.

Type	Kill switch/EPO switch
Bulb Type	LED (monochrome)
Colour housing cover	Yellow
Connection	Screw terminal
Contact Material	Silver alloy
Degree of protection (IP)	IP66
Degree of protection (NEMA)	Other
Dimensions	(L x W x H) 53 x 96 x 68 mm
Durability	300000 cycles
Electrical lifespan	1 000 000 cycles
Functions	latch
Height	68mm
Housing Colour	Grey
Housing Material	Plastic
Length	53mm
Lighting Type	LED
Max. temperature	70°C
Min. temperature	-40°C
Misc Attribute 1	Mushroom head: Round Ø 40mm
Number of command positions	1
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	1
Number of indicator lights	0
Number of key switches	0
Number of mushroom-shaped push-buttons	1
Number of push buttons	0
Number of selector switches	0
Power Consumption	N/A
Rated control supply voltage AC 50 Hz	24 - 24V
Rated control supply voltage AC 60 Hz	24 - 24V
Rated control supply voltage DC	24 - 24V
Suitable for emergency stop	true
Switch/button features	+ enclosure
Width	96mm
