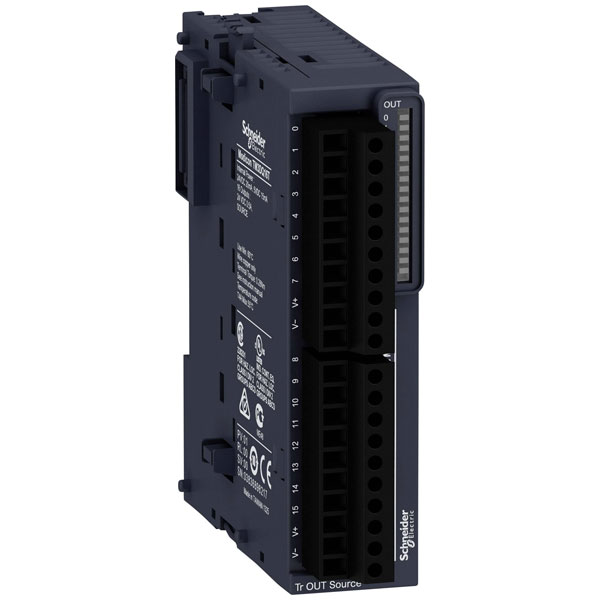

Schneider Electric TM3DQ16T PLC add-on module 16 digital outputs

The Schneider Electric TM3DQ16T is a PLC add-on module designed to enhance the functionality of programmable logic controllers. It provides additional input and output options, making it well-suited for complex automation tasks. Typical applications include industrial automation systems and process control environments.

Type	PLC add-on module
Number of Digital Inputs	0
Number of Analogue Inputs	16
Number of Digital Outputs	16
Appendant operation agent (Ex ia)	false
Appendant operation agent (Ex ib)	false
Certified for UL hazardous location class I	false
Certified for UL hazardous location class II	false
Certified for UL hazardous location class III	false
Certified for UL hazardous location division 1	false
Certified for UL hazardous location division 2	false
Certified for UL hazardous location group A (acetylene)	false
Certified for UL hazardous location group B (hydrogen)	false
Certified for UL hazardous location group C (ethylene)	false
Certified for UL hazardous location group D (propane)	false
Certified for UL hazardous location group E (metal dusts)	false
Certified for UL hazardous location group F (carbonaceous dusts)	false
Certified for UL hazardous location group G (non-conductive dusts)	false
Degree of protection (IP)	IP20
Depth	84.6mm
Digital inputs configurable	false
Digital outputs configurable	false
Dim	(W x D) 27.4 mm x 84.6 mm
Explosion safety category for dust	None
Explosion safety category for gas	None
Fieldbus connection over separate bus coupler possible	false
Front built-in possible	false
Height	90mm
Input current at signal 1	N/A
IO link master	false
IP Rating	IP20
Mobile communication standard 2G (GSM)	false
Mobile communication standard 3G (UMTS)	false
Mobile communication standard GPRS	false
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces other	0
Number of HW-interfaces parallel	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces wireless	0
Number of interfaces PROFINET	0
Output Current	0.5A
Performance level according to EN ISO 13849-1	None
Permitted voltage at input	N/A
Permitted voltage at output	19.2 - 28.8V
Rack-assembly possible	false
Radio standard Bluetooth	false
Radio standard WLAN 802.11	false
Short-circuit protection, outputs available	true
SIL according to IEC 61508	None
Suitable for rail mounting	true
Suitable for safety functions	false
Supply voltage AC 50 Hz	N/A
Supply voltage AC 60 Hz	N/A
Supply voltage DC	24 - 24V
Supporting protocol for ASI	false
Supporting protocol for AS-Interface Safety at Work	false
Supporting protocol for CAN	false
Supporting protocol for Data-Highway	false
Supporting protocol for DeviceNet	false
Supporting protocol for DeviceNet Safety	false
Supporting protocol for EtherCAT	false
Supporting protocol for EtherNet/IP	false
Supporting protocol for Foundation Fieldbus	false
Supporting protocol for INTERBUS	false
Supporting protocol for INTERBUS-Safety	false
Supporting protocol for KNX	false
Supporting protocol for LON	false
Supporting protocol for Modbus	false
Supporting protocol for other bus systems	false
Supporting protocol for PROFIBUS	false
Supporting protocol for PROFINET CBA	false
Supporting protocol for PROFINET IO	false
Supporting protocol for PROFIsafe	false
Supporting protocol for SafetyBUS p	false
Supporting protocol for SERCOS	false
Supporting protocol for SUCONET	false
Supporting protocol for TCP/IP	false
System accessory	false
Time delay at signal change	0.45 - 0.45ms
Type of digital output	Transistor
Type of electric connection	Screw connection
Type of output voltage	AC/DC
Type of voltage (input voltage)	N/A
Voltage type (supply voltage)	DC
Wall mounting/direct mounting	false
Width	27.4mm
With optical interface	false
