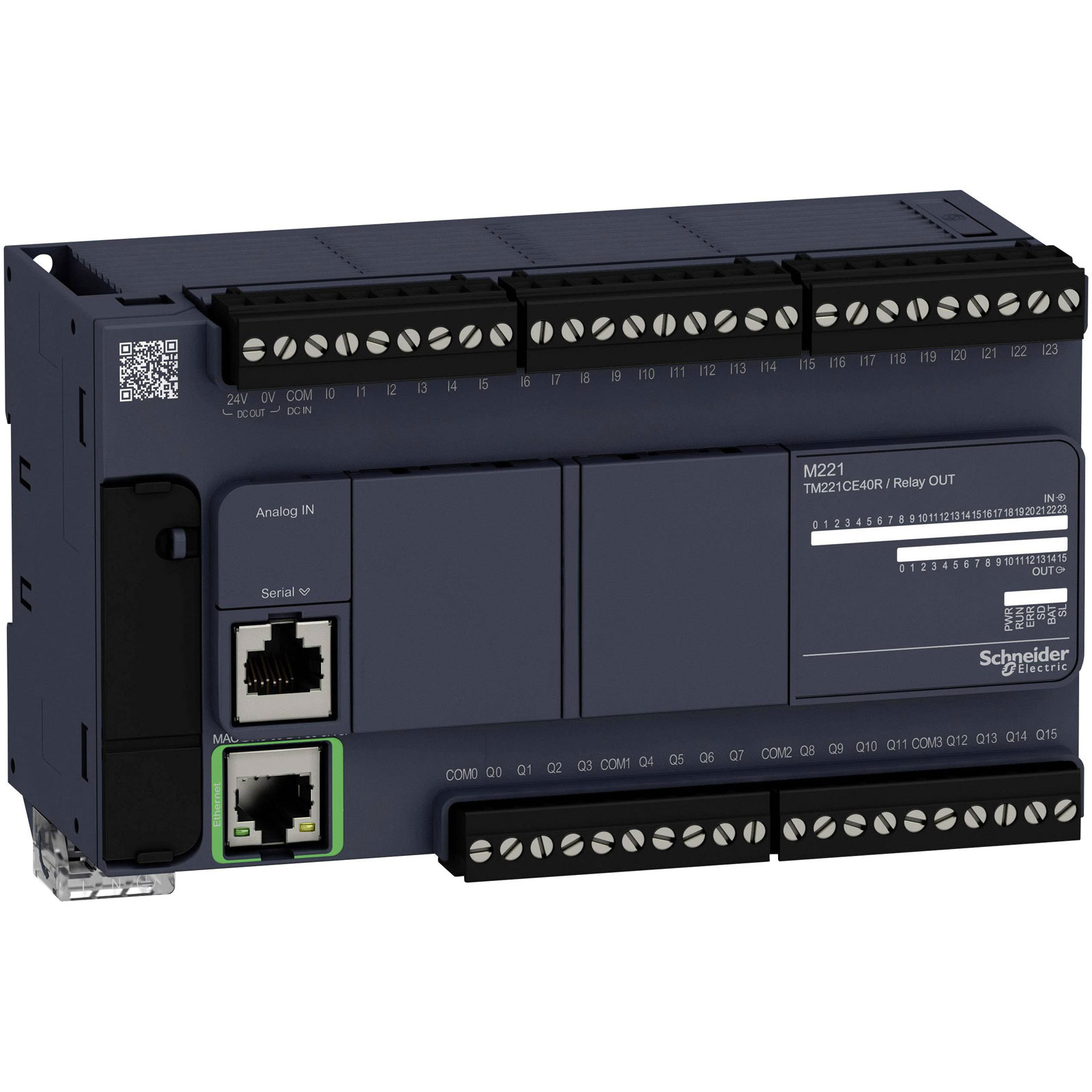

Schneider Electric TM221CE40R Modicon M221 PLC add-on module efficient

Schneider Electric manufactures the TM221CE40R PLC add-on module, providing enhanced control and automation capabilities. This module supports efficient programmability and flexible integration within industrial settings. It is commonly used in manufacturing processes for optimising operations and improving system management.

Type	PLC add-on module
Number of Digital Inputs	24
Number of Analogue Inputs	2
Number of Analogue Outputs	2
Number of Digital Outputs	0
Additional program memory possible	true
Appendant operation agent (Ex ia)	false
Appendant operation agent (Ex ib)	false
Certified for UL hazardous location class I	false
Certified for UL hazardous location class II	false
Certified for UL hazardous location class III	false
Certified for UL hazardous location division 1	false
Certified for UL hazardous location division 2	false
Certified for UL hazardous location group A (acetylene)	false
Certified for UL hazardous location group B (hydrogen)	false
Certified for UL hazardous location group C (ethylene)	false
Certified for UL hazardous location group D (propane)	false
Certified for UL hazardous location group E (metal dusts)	false
Certified for UL hazardous location group F (carbonaceous dusts)	false
Certified for UL hazardous location group G (non-conductive dusts)	false
Depth	70mm
Dim	(W x D) 160 mm x 70 mm
Explosion safety category for dust	None
Explosion safety category for gas	None
Front built-in possible	false
Height	103.6mm
IO link master	false
IP Rating	IP20
Long-Term Evolution (LTE)	false
Max. number of time switches	255
Memory Size	512kByte
Mobile communication standard 2G (GSM)	false
Mobile communication standard 3G (UMTS)	false
Mobile communication standard GPRS	false
Model	Compact
Number of HW-interfaces industrial Ethernet	1
Number of HW-interfaces other	0
Number of HW-interfaces parallel	0
Number of HW-interfaces RS-232	1
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	1
Number of HW-interfaces USB	1
Number of HW-interfaces wireless	0
Number of interfaces PROFINET	0
Number of outputs (max.)	24
Number of relay outputs	16
Performance level according to EN ISO 13849-1	None
Processing time (1K, binary operation)	0.2ms
Rack-assembly possible	false
Radio standard Bluetooth	false
Radio standard WLAN 802.11	false
Redundancy	false
SIL according to IEC 61508	None
Suitable for rail mounting	true
Suitable for safety functions	false
Supply voltage AC 50 Hz	85 - 264V
Supply voltage AC 60 Hz	85 - 264V
Supply voltage DC	N/A
Supporting protocol for ASI	false
Supporting protocol for AS-Interface Safety at Work	false
Supporting protocol for CAN	false
Supporting protocol for Data-Highway	false
Supporting protocol for DeviceNet	false
Supporting protocol for DeviceNet Safety	false
Supporting protocol for DNP3	false
Supporting protocol for EtherCAT	false
Supporting protocol for EtherNet/IP	false
Supporting protocol for Foundation Fieldbus	false
Supporting protocol for IEC 60870	false
Supporting protocol for IEC 61850 Ethernet	false
Supporting protocol for INTERBUS	false
Supporting protocol for INTERBUS-Safety	false
Supporting protocol for KNX	false
Supporting protocol for LON	false
Supporting protocol for Modbus	true
Supporting protocol for other bus systems	false
Supporting protocol for PROFIBUS	false
Supporting protocol for PROFINET CBA	false
Supporting protocol for PROFINET IO	false
Supporting protocol for PROFIsafe	false
Supporting protocol for SafetyBUS p	false
Supporting protocol for SERCOS	false
Supporting protocol for SUCONET	false
Supporting protocol for TCP/IP	true
System accessory	false
Type of memory	RAM
Voltage type (supply voltage)	AC
Wall mounting/direct mounting	true
Width	160mm
With display	false
With optical interface	false
