Schneider Electric RM22LA32MR Relay Fluid Level Monitoring 2 Change-Overs

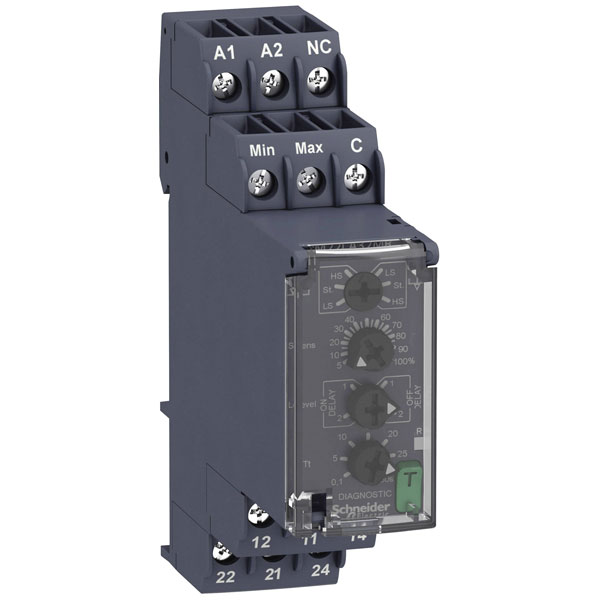

Image Representative of Range

Schneider Electric RM22LA32MR Relay Fluid Level Monitoring 2 Change-Overs

Schneider Electric
Order Code:

06-6285

Brand: Schneider Electric MPN: RM22LA32MR EAN-13: 3606480792342
Qty Unit Price (Ex VAT)
1+ £101.81
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Schneider Electric RM22LA32MR is a monitoring relay designed for fluid level monitoring in conductive fluids. This device features two change-over contacts ideal for controlling pump operations, such as pumping in or out. It is commonly used in applications where precise liquid level management is crucial, ensuring system efficiency and safety.
Cascadable false
Contact Material Cadmium free (Ag-alloy)
Contact Type 2 change-overs
Depth 79.5mm
Dim (W x H x D) 22.5 x 90 x 79.5 mm
Durability 1000 0000 cycles
Electrical lifespan 100000 cycles
Height 90mm
Max. permitted off-delay time 30s
Max. permitted operate delay time 30s
Max. temperature +50°C
Maximum Switching Load 2000VA
Min. adjustable off-delay time 0.1s
Min. adjustable operate delay time 0.1s
Min. temperature -20°C
Number of contacts as change-over contact 2
Number of contacts as normally closed contact 2
Number of contacts as normally open contact 0
Number of inputs for electrodes 3
Operating Voltage 24, 24 - 240, 240 V DC, V AC
Operating voltage AC 50 Hz N/A
Operating voltage AC 60 Hz N/A
Operating voltage DC N/A
Physical measurement principle Other
Rated switch current N/A
Response value sensitivity adjustable true
Supply voltage AC 50 Hz N/A
Supply voltage AC 60 Hz N/A
Supply voltage DC N/A
Switching current (max.) 8A
Switching voltage (max.) 250V AC
Type Monitoring relay
Type of electric connection Screw connection
Voltage type (operating voltage) N/A
Voltage type (supply voltage) N/A
Width 22.5mm
With detachable clamps false
