Schneider Electric RE22R2AMR TDR Timer 0.05s-300h 2 Change-overs

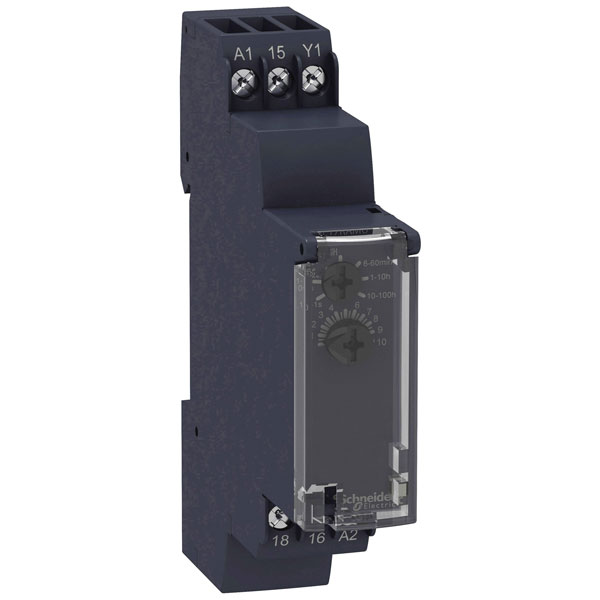

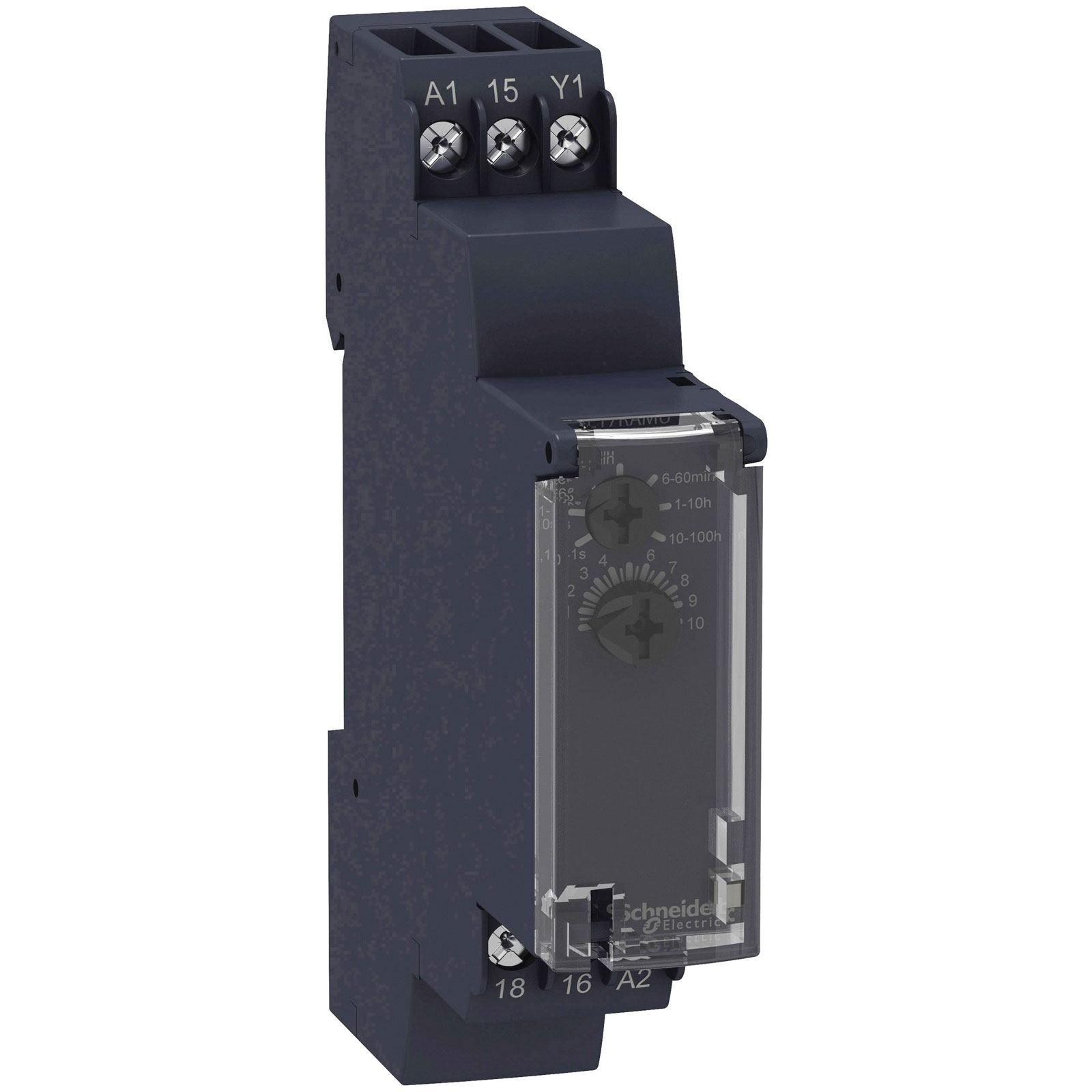

Image Representative of Range

Schneider Electric RE22R2AMR TDR Timer 0.05s-300h 2 Change-overs

Schneider Electric
Order Code:

06-6269

Brand: Schneider Electric MPN: RE22R2AMR EAN-13: 3606480792472
Qty Unit Price (Ex VAT)
1+ £60.32
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The Schneider Electric RE22R2AMR is a monofunctional time delay relay with a time range from 0.05 seconds to 300 hours and features two change-over contacts. It is designed for rail mounting and is suitable for applications like staircase lighting and delay switching. This relay provides reliable surge protection and efficient timing control.
Clock function, starting with pause, variable false
Clock function, starting with pulse, variable false
Complete with socket false
Contact Material Cadmium free (Ag-alloy)
Contact Type 2 change-overs
Degree of protection (IP) N/A
Depth 79.5mm
Dim (W x H x D) 22.5 x 90 x 79.5 mm
Durability 1 000 000 cycles
Electrical lifespan 100000 cycles
Function delay on de-energization false
Function delay-on energization true
Function flashing, starting with pause, fixed time false
Function flashing, starting with pulse, fixed time false
Function floating contact on de-energization false
Function floating contact on energization false
Function pulse shaping false
Function star-delta false
Height 90mm
Material contact N/A
Material of contact insert N/A
Material of contact surface N/A
Max. starting current N/A
Max. temperature +60°C
Maximum Switching Load 2000VA
Min. temperature -20°C
Misc Attribute 1 Monofunctional
Nominal Current 8A
Number of outputs, delayed, change-over contact 2
Number of outputs, delayed, normally closed contact 2
Number of outputs, delayed, normally open contact 2
Number of outputs, undelayed, change-over contact 1
Number of outputs, undelayed, normally closed contact 1
Number of outputs, undelayed, normally open contact 1
Operating Voltage 24, 24 - 240, 240 V DC, V AC
Operating voltage AC 50 Hz N/A
Operating voltage AC 60 Hz N/A
Operating voltage DC N/A
Outputs, reversible delayed/undelayed true
Pluggable on auxiliary contact block false
Rated control supply voltage AC 50 Hz 24 - 240V
Rated control supply voltage AC 60 Hz 24 - 240V
Rated control supply voltage DC 24 - 240V
Relay technology category according to IEC 61810-7 N/A
Remote operation possible false
Suitable as remote control false
Suitable for DIN rail (top hat rail) mounting true
Suitable for front mounting N/A
Switching current (max.) 8A
Time range 0.05 - 1080000s
Time range (max.) 300h
Time range (min.) 0.05s
Type TDR
Type of electric connection Screw connection
Voltage type (operating voltage) N/A
Voltage type for actuating AC/DC
Width 22.5mm
With semiconductor output false
